Prudential Lighting

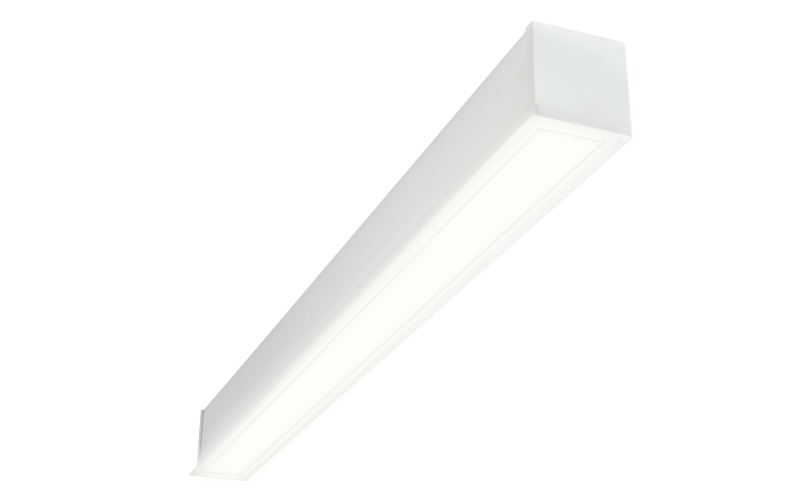

BPRO3-PER. QUICKSHIP: BionicPro3 — 3'' Perimeter.
Configure
Add to project
RESOURCES
DESCRIPTION
A complete family of 2˝ – 3˝ – 4˝ – 5˝ apertures, linear, recessed, perimeter all with a continuous seamless lens.
- Industry-best wall grazer (MGZ) at up to 135 LPW, 1300 lumens per foot (5˝).
- Perimeter grazer or specify off the wall 3˝- 6˝.
- Perimeter Room Fill (PFL) to light corridors or other spaces from one side of the perimeter.
- Filler fixtures telescope up to 14˝ offering field-cuttable “custom length” fixtures, simplifying wall-to-wall installs.
- DLC listed (Satin SAL lens), Declare labeled.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 5/16"3 5/8"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)3.8 W/Ft5.6 W/Ft7.8 W/Ft10.5 W/Ft
- Lumens(Approx)475 Lm/Ft700 Lm/Ft975 Lm/Ft1225 Lm/Ft
- OpticsDirectGrazingGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance200000 h
- CertificatesETLMade in USADLC*Declare
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingTech ZoneSlot T-Grid Ceiling
- HousingIC
- Housing Depth7 11/16 ''9 9/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBPRO3-PER_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
