NCVR. NanoCove - Remote Driver.
Configure
Add to project
RESOURCES
DESCRIPTION

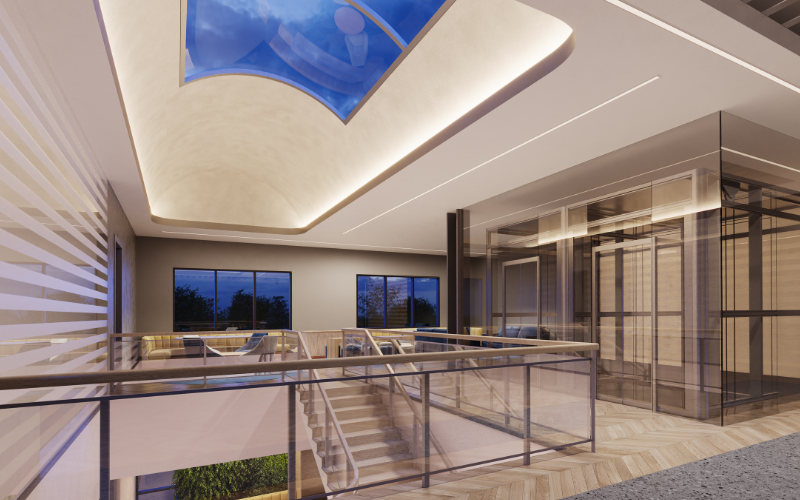

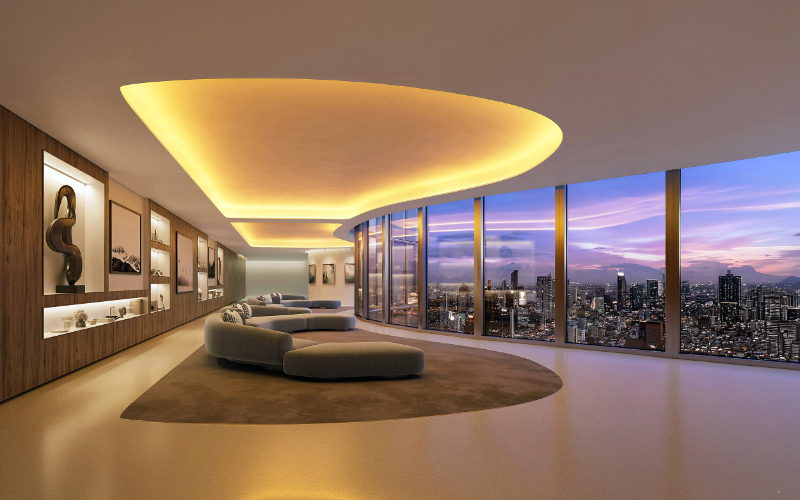

Ultra-compact cove lighting for small architectural spaces.

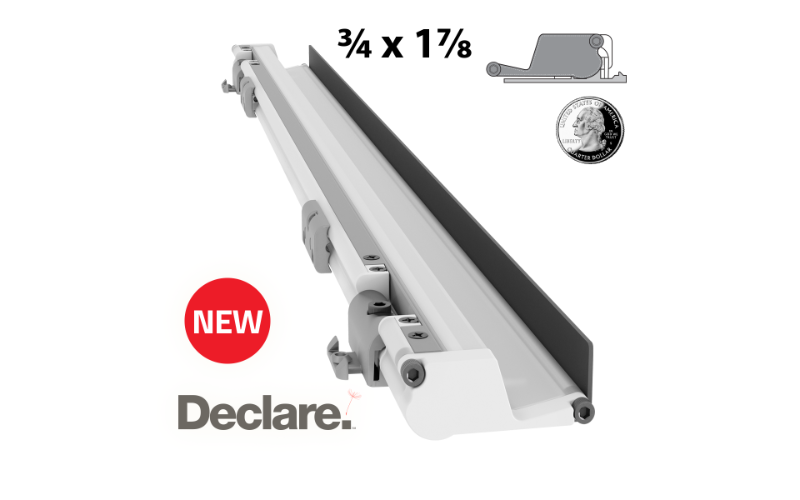

- Incredibly small 2˝ x .75˝ asymmetric luminaire with remote drivers.
- Hard Asymmetric Ceiling Wash (HACW) for smooth close-to-ceiling illumination.
- Soft Asymmetric Ceiling Wash (SACW) and Tilted Lambertian (TLMB) for sloped and domed ceilings.
- Up to 110 LPW and 1200 lumen/ft.
- Optional black flange to eliminate LED light reflections from front of cove onto back wall.
- Optional Lift Kit for up to 2˝ of adjustable height for taller coves.
- Up to 30˚ of tilt for vaulted ceilings.
- RGBW ChromaHue, Tunable White TuHue, Warm Dim AmberHue.
- Optional Shelf and Knife-edge extrusions coming soon.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 7/8"L: 1 Ft2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun length (inch)H: 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBW
- CRI90 80
- Watt(Approx)2.9 W/Ft3.6 W/Ft5.4 W/Ft10.9 W/Ftcustom
- Lumens(Approx)300 Lm/Ft400 Lm/Ft600 Lm/Ft1200 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Step DimNon-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)EldoLED 0-10V/DALIDMX
- Controls/NetworknLight®
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance200000 h
- CertificatesCSAIBEW
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
