Prudential Lighting

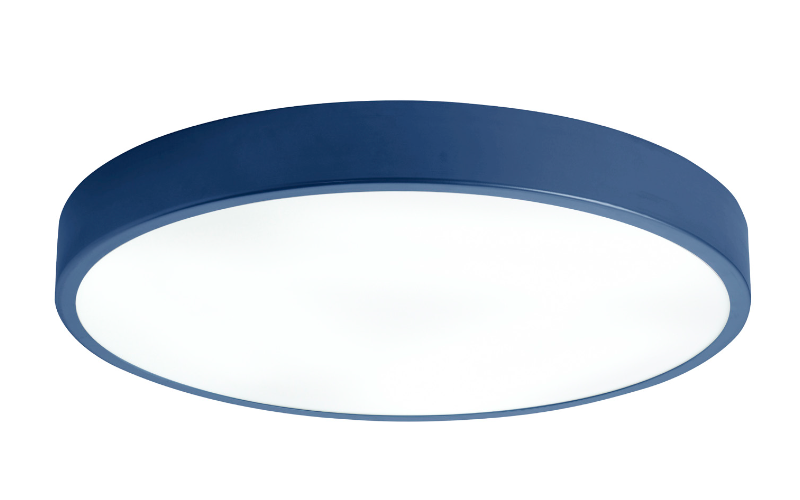

P3900. QUICKSHIP: Sky Oculus Series P3900.
Configure
Add to project
RESOURCES
DESCRIPTION
Classic styling, the original ‘big round’ we launched in the early 1970s.
- 18˝, 2´, 3´and 4´.
- Hand-spun steel housing with beveled top detail.
- Flat acrylic lens.
- Uplight available (~ 15% to 30%).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 18 7/8"26 3/4"37 5/8"48 7/16"L: 18 7/8"26 3/4"37 5/8"48 7/16"H: 4 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90 80
- Watt(Approx)6 W9 W11 W13 W12 W17 W18 W29 W25 W32 W37 W40 W45 W48 W54 W73 W81 W139 W106 W220 Wcustom
- Lumens(Approx)700 Lm900 Lm1350 Lm1100 Lm1300 Lm1333 Lm1966 Lm2350 Lm2700 Lm3000 Lm2600 Lm4100 Lm4900 Lm7000 Lm7400 Lm9200 Lm8100 Lm13900 Lm11600 Lm14800 Lm23000 Lmcustom
- OpticsDirectSemi-directGeneral Diffused
- Adjustable
- DimmingDim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance150000 h
- CertificatesETLMade in USAIBEWDeclare
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeP3900_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
