Prudential Lighting
PRU1. Pru1 Linear.
Configure
Add to project
RESOURCES
DESCRIPTION
“I want to see light, not light fixtures.”

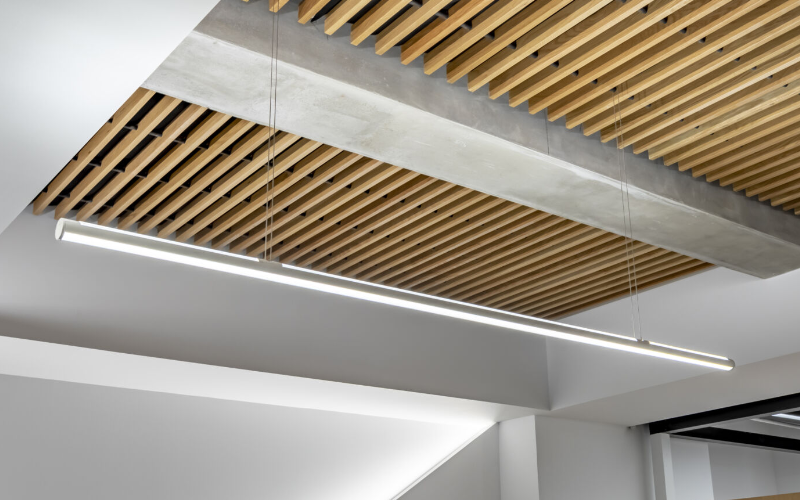

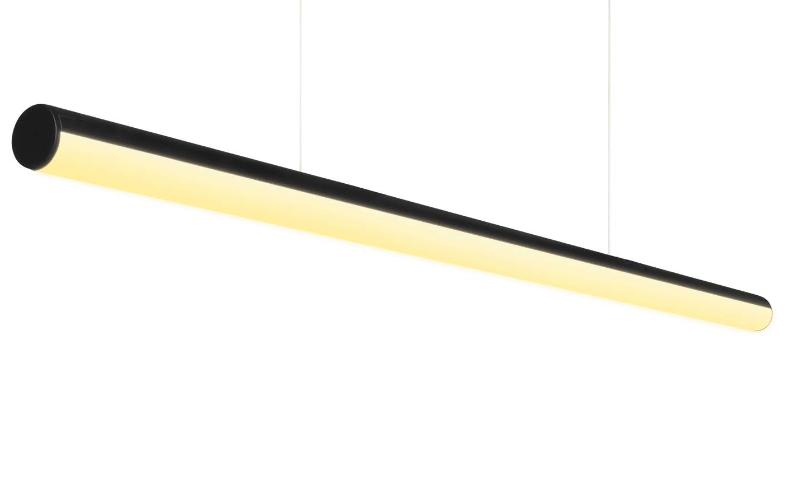

In the spirit of “less is more,” we’ve designed Pru1 with minimal form linear D/I illumination, nearly invisible hanging hardware options, and a Ceiling Wash that limits the intensity directly above the fixture, creating a more evenly lit ceiling. See our Pru1 Wall Wash spec sheet to achieve a fully cohesive look with sleek, subtle illumination throughout the entire space.
In the spirit of “less is more,” we’ve designed Pru1 with minimal form linear D/I illumination, nearly invisible hanging hardware options, and a Ceiling Wash that limits the intensity directly above the fixture, creating a more evenly lit ceiling. See our Pru1 Wall Wash spec sheet to achieve a fully cohesive look with sleek, subtle illumination throughout the entire space.
- 1.5˝ diameter Direct/Indirect, Direct, Indirect, Asymmetric
- 1.75˝ with Louver
- Ceiling Wash for even ceiling illumination
- Flat + Focal Glow Wall Washes
- Power Over Aircraft cable, no power cord option
- Nearly invisible .5˝ hanging hardware (T-bar)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 11/16"1 1/2"L: 2'3'4'5'6'7'8'Run length (Ft)H: 1 11/16"1 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90 80
- Watt(Approx)3 W/Ft4.75 W/Ft7 W/Ft9.25 W/Ftcustom
- Lumens(Approx)250 Lm/Ft270 Lm/Ft425 Lm/Ft450 Lm/Ft600 Lm/Ft625 Lm/Ft825 Lm/Ft850 Lm/Ftcustom
- OpticsDirectIndirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Step DimNon-Dim0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance150000 h
- CertificatesCSAMade in USAIBEWDeclareBAA
- EnvironmentDamp
- Mounting TypePendantWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRU1
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
