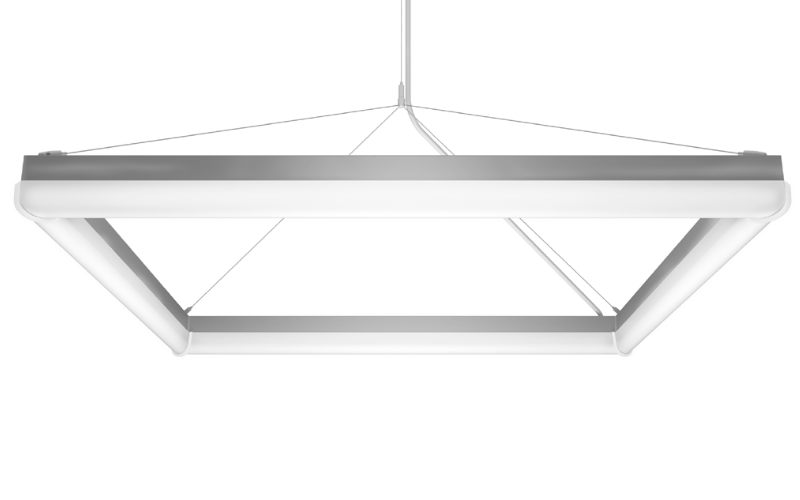

ZD. Zenith Down Pendant.
Configure
Add to project
RESOURCES
DESCRIPTION
Zenith elevates a simple strip of light into an architectural luminaire.
- 2´ x 2´, 3´ x 3´ and 4´ x 4´ (consult factory for other sizes up to 4´ x 8´)
- Four configurations: Up, Down, In and Out
- IN: Sleek and refined aesthetic
- OUT: A modern square pendant
- UP: An indirect rock star at over 100 lumens/watt.
- DOWN: Brightens up and defines a space
- Square or round acrylic lens
- Choose from one of our Premium Colors with no set-up fee
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 25 1/2"37 1/2"49 1/2"L: 25 1/2"37 1/2"49 1/2"H: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90 80
- Watt(Approx)34 W44 W50 W72 W66 W67 W88 W108 W140 Wcustom
- Lumens(Approx)3800 Lm5000 Lm7000 Lm5750 Lm7500 Lm7650 Lm10500 Lm9950 Lm14100 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-Dim0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance150000 h
- CertificatesETLMade in USAIBEW
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeZD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
