Q-Tran

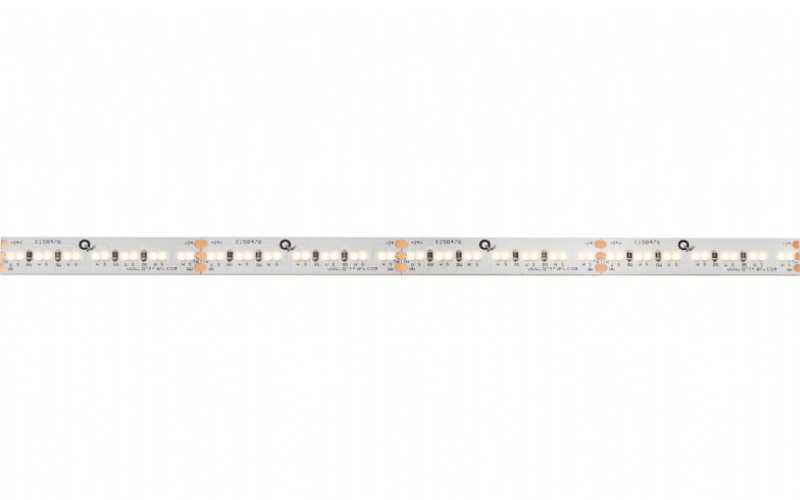

DW-HE24/3.0. STRIP Dynamic White High Efficacy.
Configure
Add to project
RESOURCES
DESCRIPTION
DW-HE24/3.0 is a 24-volt, 3.0-watt/foot, high efficacy dynamic white linear LED strip for warm dim and adjustable white applications. 14 diodes per 2” cut point, 7 diodes per one color temperature.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.39"0.47"L: Run length (inch)H: 0.05"0.12"0.18"
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm3500K Dim to WarmTunable White
- CRI94 96 95 92
- Watt(Approx)3 W/Ft
- Lumens(Approx)170 Lm/Ft178 Lm/Ft181 Lm/Ft200 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesUL/CULT24*RoHS
- EnvironmentDampIP67
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDW-HE24-30
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
