Q-Tran
EB1RGB. EMBD-FLAT (01) Linear RGB.
Configure
Add to project


RESOURCES
DESCRIPTION

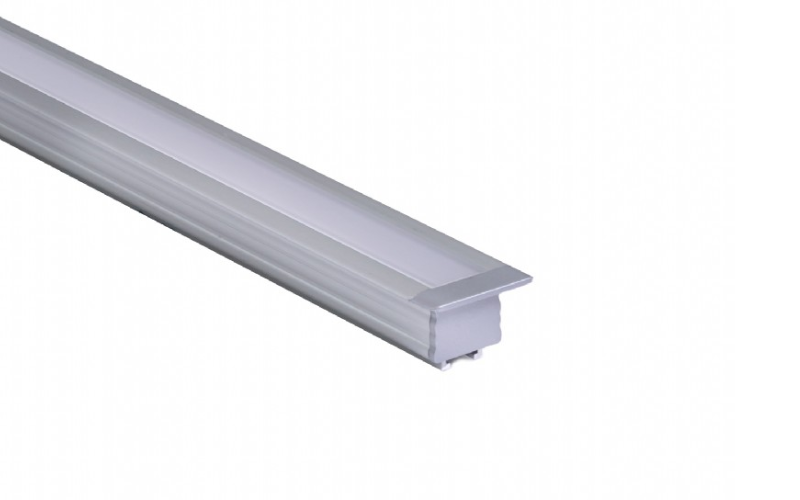

EMBD-Flat (01) is a fully assembled recessed-mount linear fixture that integrates with millwork and other wall styles to create a clean, unobtrusive aesthetic. Its specification-grade satin-finished construction is available with an assortment of LED light engines to provide seamless light lines. EMBD's outer trim sits flush to the surface and recesses in at a depth of 0.77" with the magnet mounting clip and 1.27" with the spring mount clip. Each unit has power leads from one or both sides of the housing for multi-unit connection.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.14"L: Run length (inch)
- Light SourceLED
- CCT/ColorRGB
- CRI
- Watt(Approx)6 W/Ft
- Lumens(Approx)145 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesUL/CULRoHS
- EnvironmentDampIP67
- Mounting TypeSurfaceDrywall
- HousingFixture
- Housing Depth.71 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
