RCL (by Luminii)

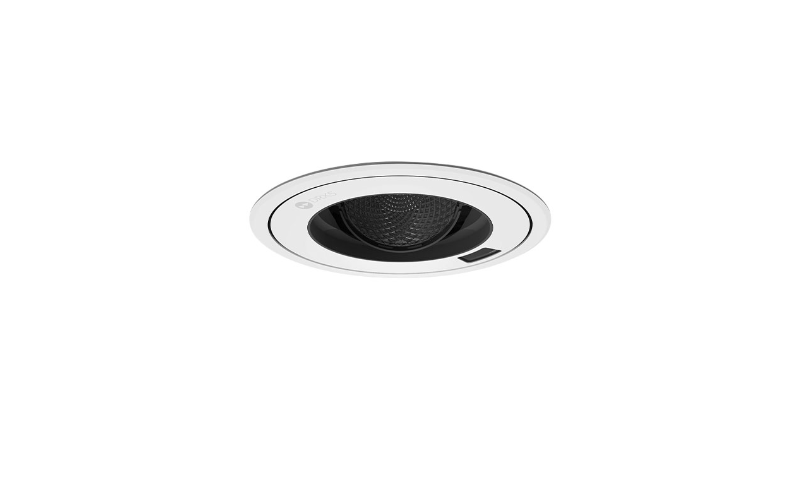

DRX5. Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
DRX5 is a compact recessed luminaire that masters the art of pin spotting and accent lighting while combining excellent beam quality with all the benefits of RCL technology. Measuring just 145mm in diameter, DRX5 is RCL’s smallest recessed product and is suitable for use in low ceiling voids, making it the perfect solution for applications with tight space constraints and projects requiring precise pin spotting. DRX5 offers a wide selection of beam options including the new Variable Pinspot technology.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.37"L: 6.37"
- Light SourceLED
- CCT/Color2700K3000K4000KTunable White
- CRI90
- Watt(Approx)14 W16 W14-20 W20 W17 W
- Lumens(Approx)540 Lm470-768 Lm439-1335 Lm628 Lm638-995 Lm986-1309 Lm1304 Lm1399 Lm1474 Lm
- OpticsDirectNarrowMediumFloodAdjustable Optics
- AdjustableAdjustable
- DimmingDim to 3-10%0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLCE
- Environment
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingIC
- Housing Depth7 ''8.6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDRX5
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
