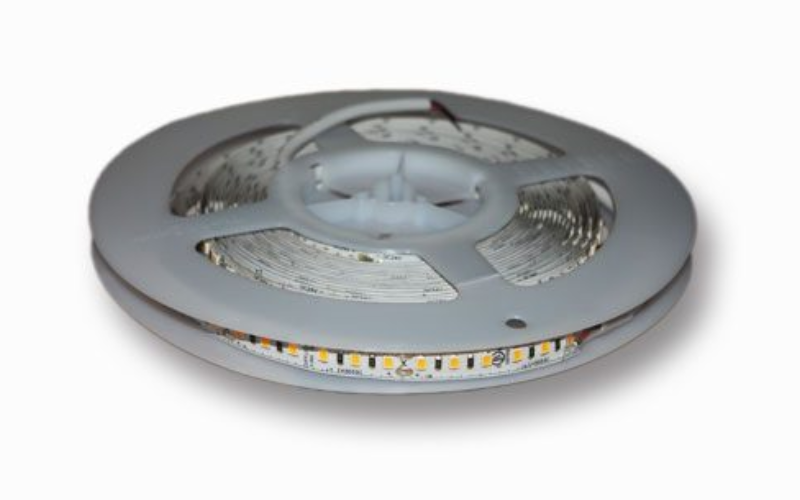

SL6-IN. Indoor Diffusion LED Strip.
Configure
Add to project
RESOURCES
DESCRIPTION
Diffusion SL6 - Indoor is a flexible 10mm wide linear LED strip. It is available in 16′ and 100′ rolls as well as custom cuts that can be cut every 6 LEDs (50mm or 2").
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.39"L: 16'100'H: 0.05"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI91
- Watt(Approx)4.5 W/Ft
- Lumens(Approx)366 Lm/Ft384 Lm/Ft402 Lm/Ft420 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworkCasambi
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- Environment
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSL6-IN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
