Sattler (Inter-Lux)
AVVENI CEILING 4.
Configure
Add to project
RESOURCES
DESCRIPTION

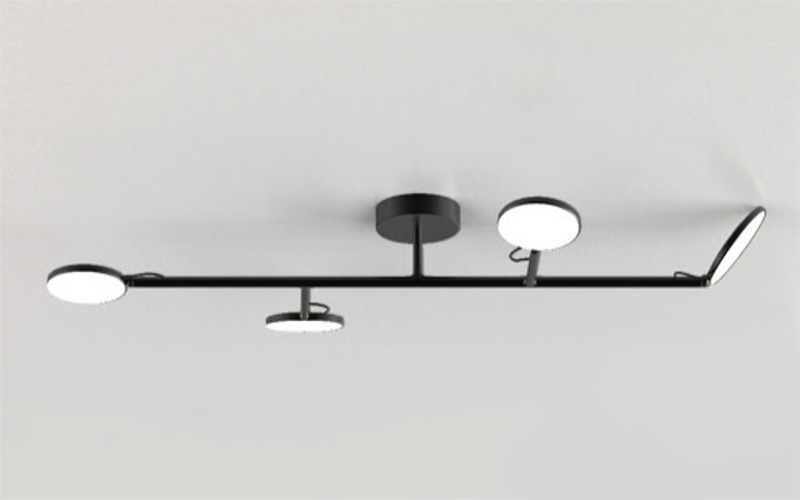

Aluminum structure with 4 light heads. Each light head can be taken off and is fully adjustable through a magnetic hinge system. Light heads are available as flood or spot versions
(9 degree beam angle with lenses for 25, 36, and 60 degrees).
(9 degree beam angle with lenses for 25, 36, and 60 degrees).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 34.7"L: 68.6"H: 6.5"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI95
- Watt(Approx)68 W76 W
- Lumens(Approx)5376 Lm5072 Lm4696 Lm
- OpticsDirectNarrowFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- Environment
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeAVVENI-C
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
