Selux
L36. M36 Shapes LED Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION

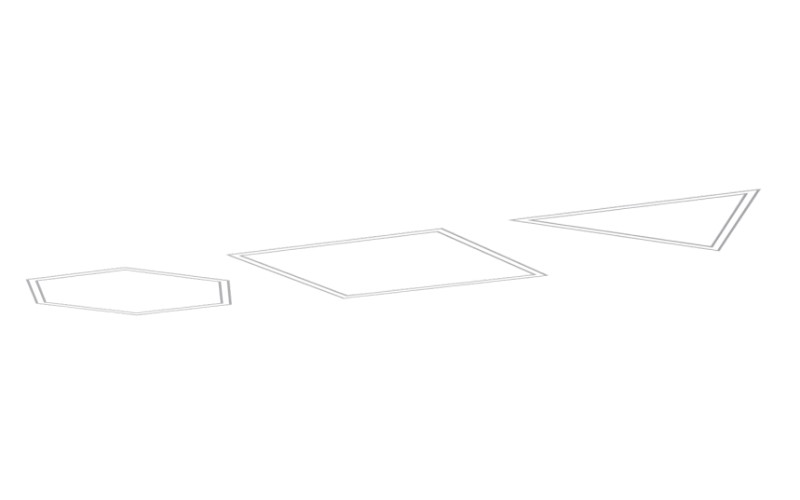

Taking on a new form, the M-Series LED product range is available in standard geometric shapes. Direct and Recessed fixtures in M36, M60, and M100 are available in Square, Rectangle, Triangle, and Hexagon shapes, with 1’, 2’, 3’, or 4’ leg lengths. Other shapes and sizes are available upon request.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 7/16"L: 1 Ft2 Ft3 Ft4 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000KRGBW
- CRI90 80
- Watt(Approx)4.9 W9.9 W8.7 W7.3 W6.1 W11.1 W
- Lumens(Approx)637 Lm510 Lm988 Lm769 Lm1221 Lm1095 Lm
- OpticsDirectGeneral DiffusedBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VLutron Hi-Lume 3-wire (L3D)Lutron Hi-lume EcoSystem (LDE1)eldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULMade in USAIBEWRoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingIC
- Housing Depth2 13/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeL36R
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
