Selux

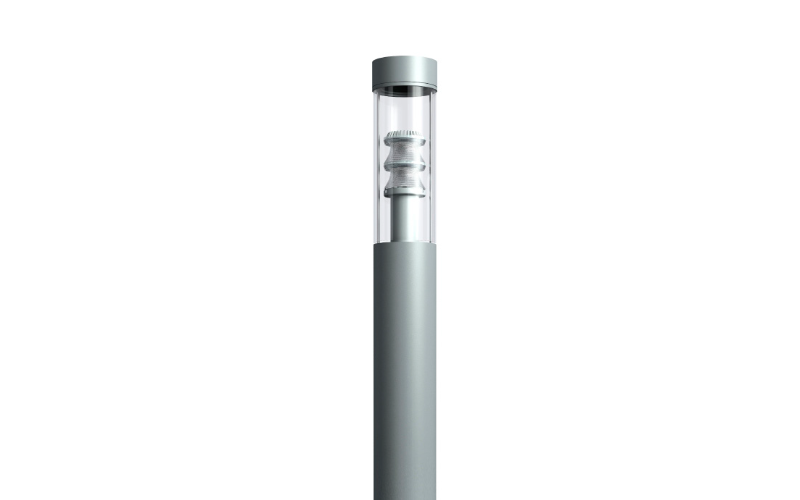

MEXTL. Modular Exelia Tritec LED.
Configure
Add to project



RESOURCES
DESCRIPTION

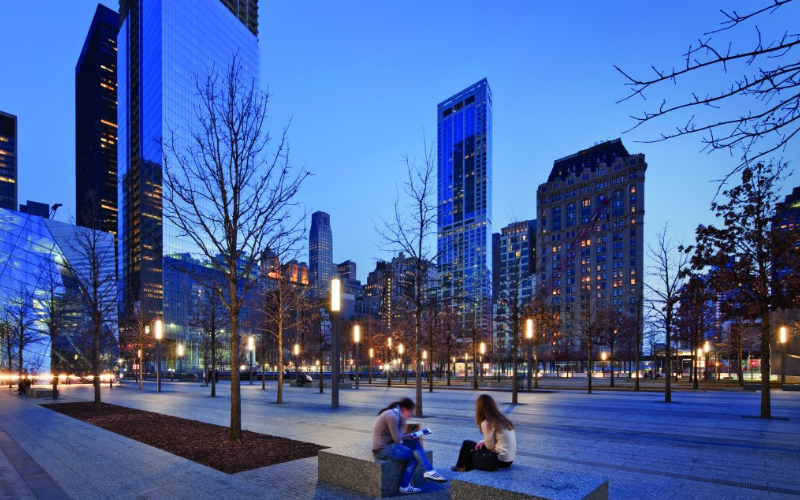

Solving the issue of visual clutter – Selux Modular Columns integrate a wide range of unique optical systems and high-end camera or speaker options. All components are housed completely inside the Ø8” extruded column body, so your column still looks like a clean architectural element. It is possible for a single Modular Column to provide the same function of three or more individually mounted products. Cleaning up a site lighting plan prevents distraction from the architectural and landscape design features, giving your project a more professional look.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 7/8"L: 7 7/8"H: 24 1/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80
- Watt(Approx)24 W50 W67 W91 W
- Lumens(Approx)2037 Lm4521 Lm5856 Lm7597 Lm
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Multi Switching0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULIBEWRoHSBAA
- EnvironmentIP65
- Mounting TypeLight Column
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMEXTL
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
