Solas Ray Lighting

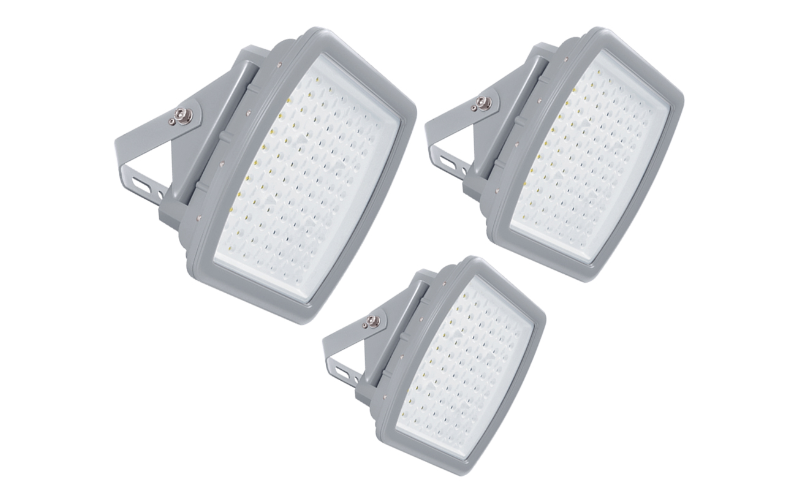

HCS. The WARDEN Series Hazardous Location Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- 16˝, 12˝ and 8˝ sizes.
- Class 1 Division 2 – Groups A, B, C, D (Flammable Gases & Vapors).
- Ambient temperature capabilities: -40˚C to 55˚C (104˚F).
- Corrosion proof – Coated aluminum alloy housing.
- Gray nylon corrosion resistant powder coat.
- Optically designed reflector for wide area illumination.
- Built-in 4k surge protection.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"12"16"L: 8"12"16"32"H: 5.7"6.4"6.6"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI73
- Watt(Approx)40 W60 W80 W100 W120 W150 W180 W200 W240 W300 W
- Lumens(Approx)5000 Lm7500 Lm10000 Lm12500 Lm15000 Lm18750 Lm23125 Lm25000 Lm30000 Lm37500 Lm46250 Lm
- OpticsDirectFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 3-10%
- Controls/Network
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral EmergencyEM Integral
- Lumen Maintenance70000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentIP67MarineHazardous
- Mounting TypePole/Mast ArmPendantCeiling SurfaceCeiling RecessedWall Arm/CantileverBracketsGround Arm/StanchionDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth6.6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHCS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
