Solas Ray Lighting

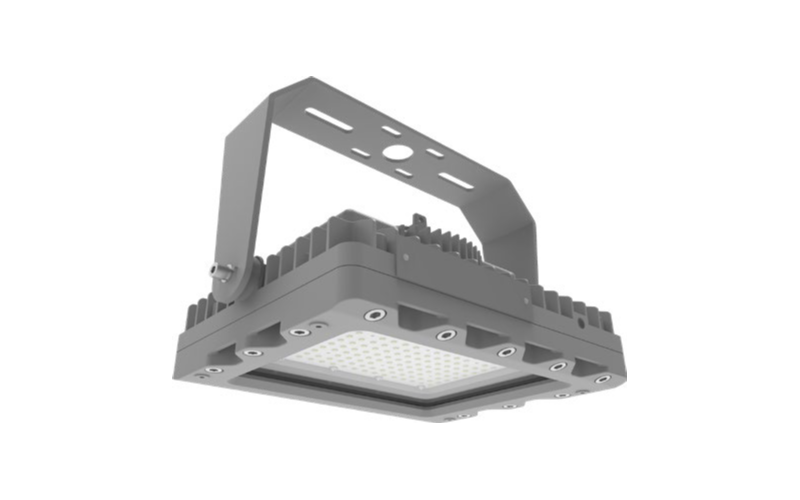

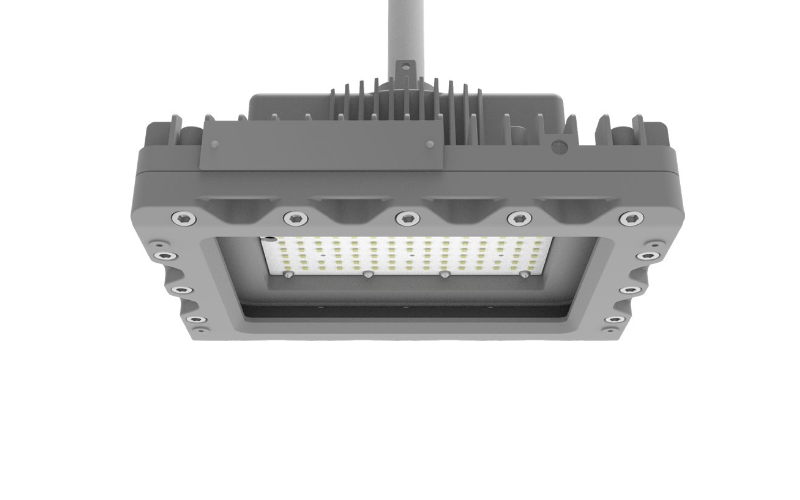

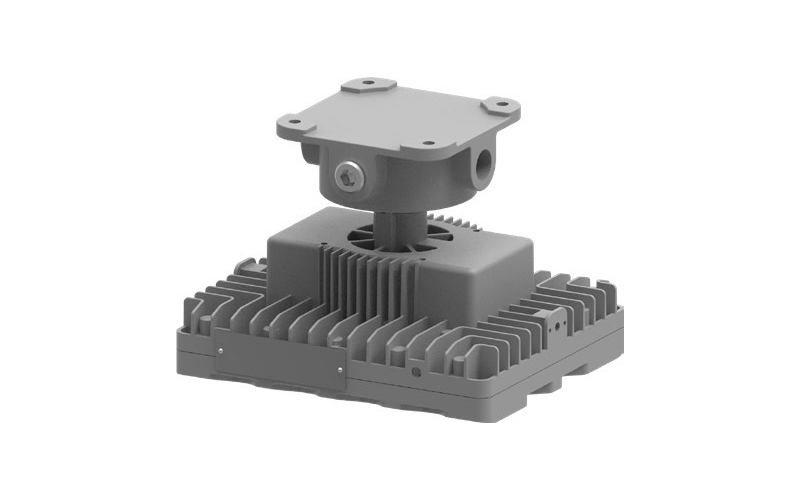

HGMM. The MINI MAX Hazardous Location LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Small footprint, low profile hazardous location LED fixture – 8.5” x 10” x 5”.
- Built for reliability in high vibration and shock environments (5G shock certified).
- Ambient temperature rated -40°C (-40°F) to 65°C (149°F).
- Highly efficient 160 lumens per watt.
- Multiple beam patterns available.
- Versatile mounting styles available.
- 10kV surge protection included standard.
- 1-10 VDC dimming.
- Tested 1000 hours salt spray to standard ASTM”B117-11” / Marine UL1598A
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.43”L: 10.16"H: 5.08"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI
- Watt(Approx)20 W40 W60 W
- Lumens(Approx)1200 Lm6400 Lm9600 Lm
- OpticsDirectFloodWide FloodType IIType IIIType IV
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance150000 h
- CertificatesUL/CULDark Sky
- EnvironmentIP66IP67MarineHazardous
- Mounting TypePendantCeiling SurfaceWall SurfaceTrunnionTenon AdapterGround Arm/Stanchion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHGMM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
