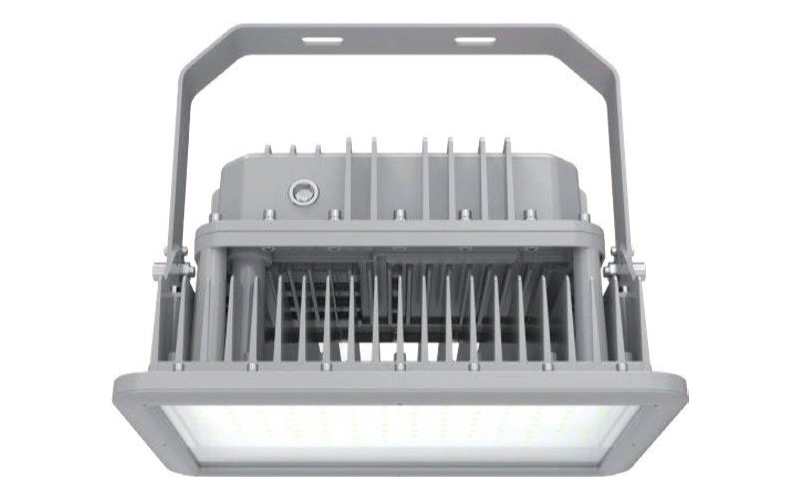

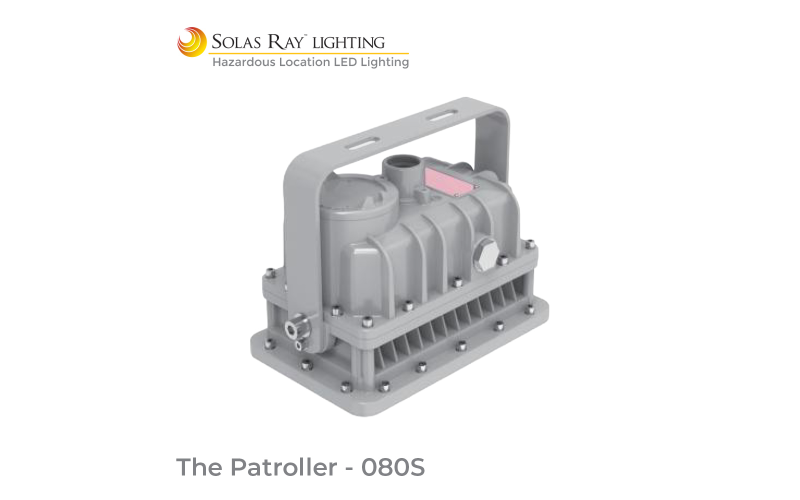

HJAS. The PATROLLER™ Hazardous Location LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Hazardous Location lighting with selectable CCT and power.
- Ideal choice for high moisture, dirty, corrosive, windy, snowy, high temperature or high vibration environments (Vibration 3G certified).
- Round access cover for easy and convenient wiring.
- Marine rated powder coated finish for high corrosion resistance.
- *IK08 impact rated, IK10 with wire guard.

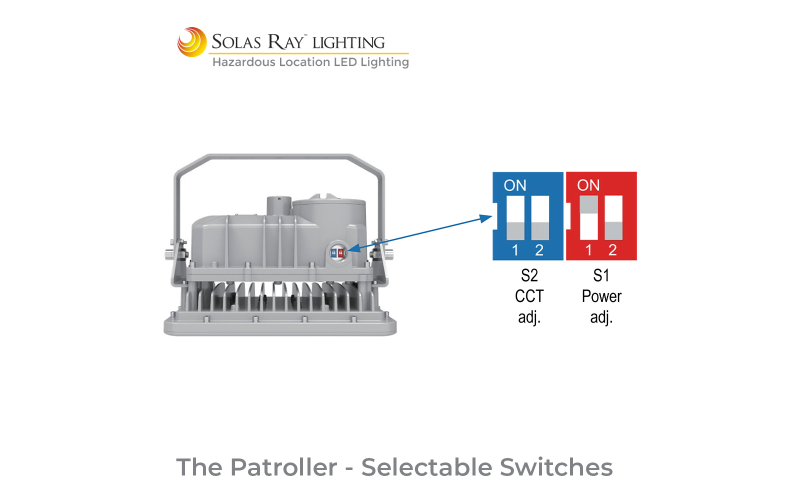

- Conveniently set color temperature and wattage with DIP switches.
- Stainless steel hardware.
- 500 hours salt spray test passed.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.3"9.05"11.81"L: 9.84"14.96"16.54"H: 8.07"11.82"14.88"
- Light SourceLED
- CCT/Color4000K5000K6500KField Select CCT
- CRI70
- Watt(Approx)40-80 W120-200 W200-300 Wswitchable
- Lumens(Approx)6100-12000 Lm21200-34100 Lm34100-54800 Lmswitchable
- OpticsDirectFloodWide FloodGeneral DiffusedType IIType IIIType V
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentIP66MarineHazardous
- Mounting TypeCeiling SurfaceWall Arm/CantileverTenon AdapterBrackets
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
