Solas Ray Lighting

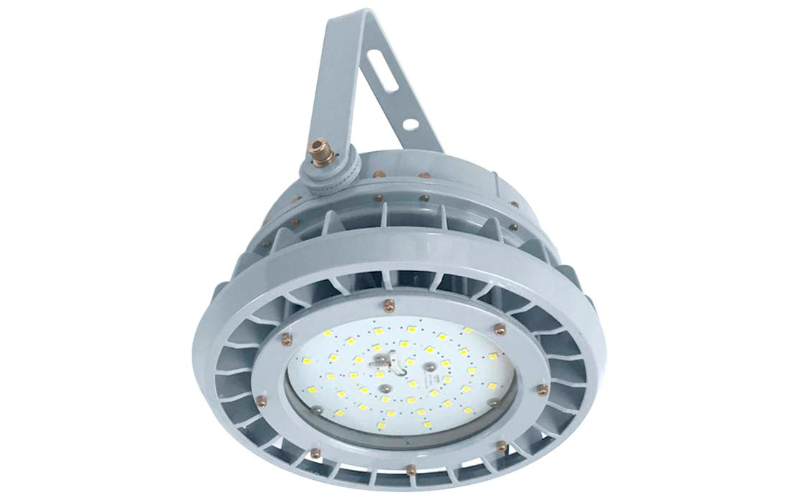

HJBR2. The FOREMAN Series Hazardous Location Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Two sizes for precise lighting based on wattage requirements.
- Class 1 Division 2 – Groups A, B, C, D (Flammable Gases & Vapors).
- Class 2 Division 1 – Groups E, F, G (Combustible Dusts).
- Class 2 Division 2 – Groups E, F, G (Combustible Dusts).
- Class 3 Divisions 1 & 2.
- Ambient temperature capabilities: -40˚C to 50˚C (122˚F).
- Corrosion proof – Coated aluminum alloy (copper free) housing.
- Gray nylon corrosion resistant powder coat.
- Marine and wet location ready.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.2"10.6"14.62"L: 9.2"10.6"14.62"H: 14"15.5"
- Light SourceLED
- CCT/Color4000K5000K
- CRI70
- Watt(Approx)20 W40 W60 W80 W100 W150 W200 W
- Lumens(Approx)3000 Lm5600 Lm8400 Lm11200 Lm16200 Lm23300 Lm28000 Lm
- OpticsDirectFloodWide FloodGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277VUNC 347-480V
- Integral EmergencyEM Integral
- Lumen Maintenance70000 h
- CertificatesETLNSF
- EnvironmentIP66Hazardous
- Mounting TypePendantCeiling SurfaceWall Arm/CantileverTrunnionGround Arm/Stanchion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHJBR2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
