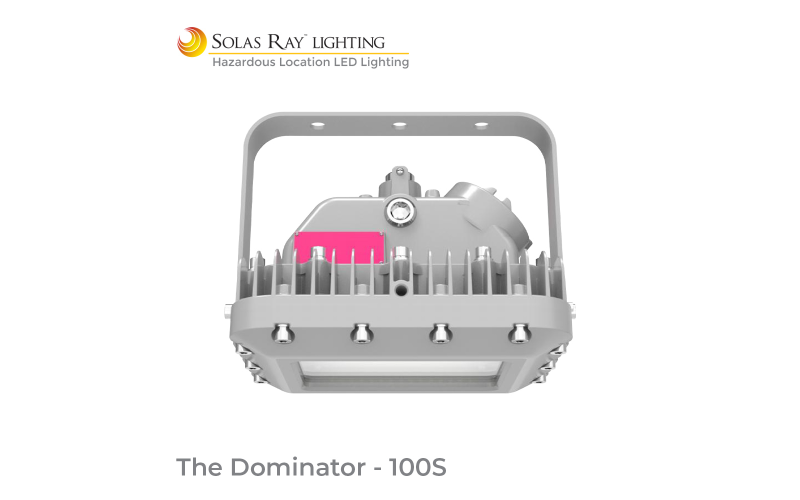

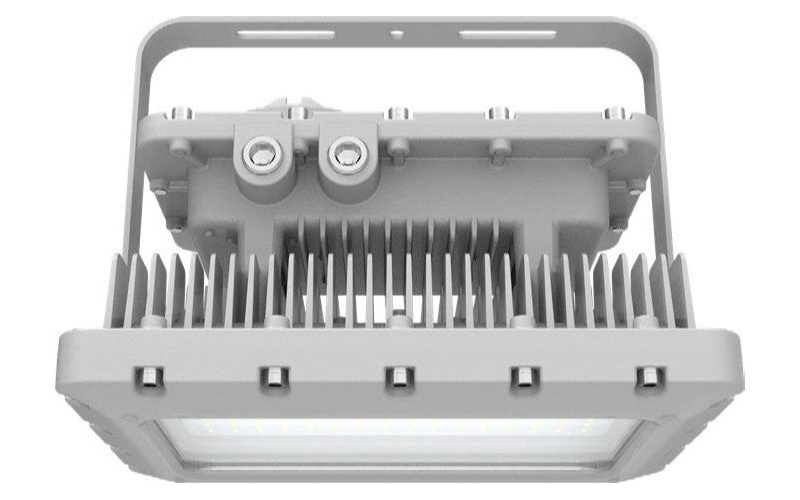

HJDS. The DOMINATOR™ Hazardous Location LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Hazardous Location lighting with selectable CCT and power.
- Ideal choice for high moisture, dirty, corrosive, windy, snowy, high temperature or high vibration environments (Vibration 3G certified).
- Round access cover for easy and convenient wiring.
- Marine rated powder coated finish for high corrosion resistance.
- Emergency battery available for larger model – 8W.
- IK10 impact rated.

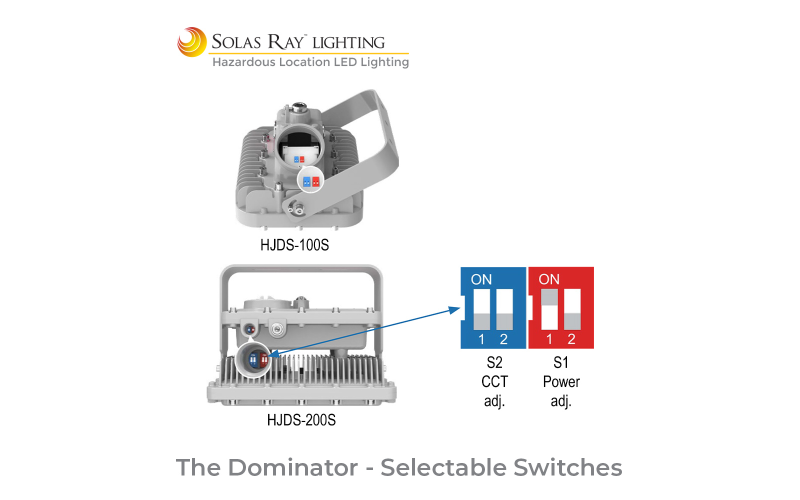

- Conveniently set color temperature and wattage with DIP switches.
- 1-10V Dimming.
- 500 hours salt spray test passed.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.7"11.4"L: 10.6"15.9"H: 9.3"12.7"
- Light SourceLED
- CCT/Color4000K5000K6500KField Select CCT
- CRI70
- Watt(Approx)60-100 W120-200 Wswitchable
- Lumens(Approx)8000-12800 Lm19300-31600 Lmswitchable
- OpticsDirectFloodWide FloodGeneral DiffusedType IIType IIIType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CUL
- EnvironmentIP66MarineHazardous
- Mounting TypeCeiling SurfaceWall Arm/CantileverBracketsGround Arm/Stanchion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
