Solas Ray Lighting

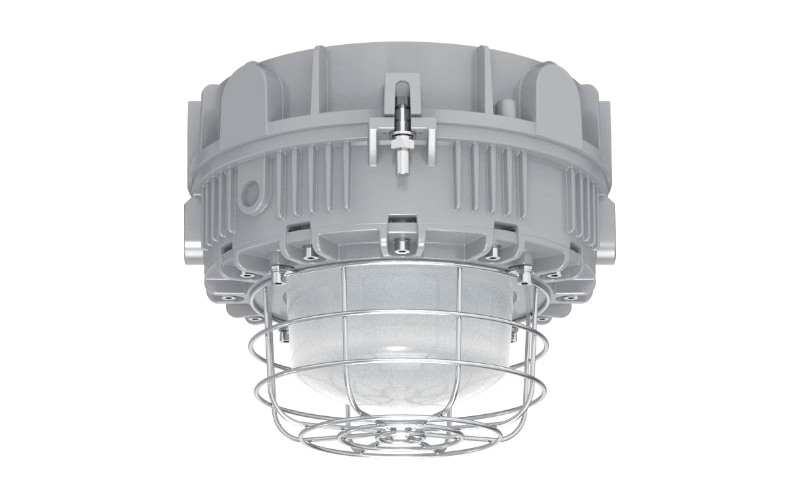

HJQA. The ASSISTANT Hazardous Location LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Hazardous Location lighting with selectable CCT and power.
- Standard drop lens makes the Assistant™ the perfect replacement for HID/Incandescent walkway lighting.
- Ideal choice for high moisture, dirty, corrosive, windy, snowy, high temperature or high vibration environments (Vibration 3G certified).
- *IK10 rated when configured with a wire guard, IK08 without wire guard.
- Conveniently set color temperature and wattage with DIP switches.
- 1-10V Dimming.
- 500 hours salt spray test passed.
- 304 stainless steel hardware.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 10.39"L: 10.39"H: 8.34”
- Light SourceLED
- CCT/Color4000K5000K6500KField Select CCT
- CRI80
- Watt(Approx)40-60 Wswitchable
- Lumens(Approx)6000-9000 Lmswitchable
- OpticsDirectFloodWide FloodGeneral DiffusedType IIType IIIType V
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V277VUNC 347-480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentIP66MarineHazardous
- Mounting TypeCeiling SurfaceWall Arm/CantileverTenon AdapterBracketsGround Arm/Stanchion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHJQA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
