Solas Ray Lighting

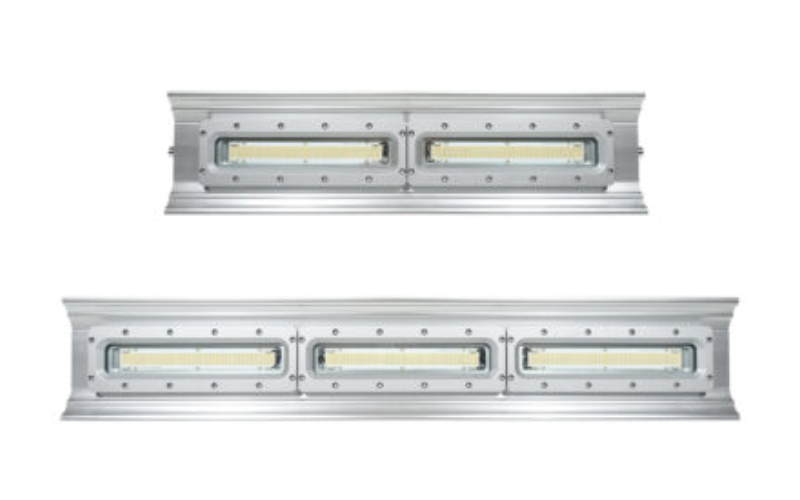

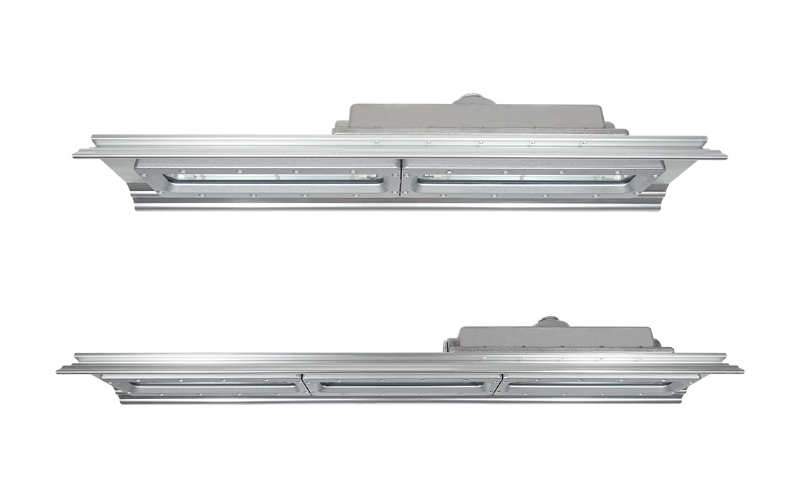

HTL3. The KEEPER 3 Hazardous Location LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
- Class I, Division 1 hazardous rated linear fixture.
- Up to 120 minute integrated emergency battery backup available.
- 2 or 3 window design.
- Durable aluminum alloy enclosure with tempered glass lenses.
- IP67 and Nema 6 rated.
- Trade Agreement Act Compliant
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.68"L: 29.84”42.56”H: 5.19"
- Light SourceLED
- CCT/Color3000K5000K
- CRI80 70
- Watt(Approx)80 W100 W120 W135 W150 W140 W165 W180 W200 W155 W170 W
- Lumens(Approx)11200 Lm14000 Lm16800 Lm18900 Lm19600 Lm21000 Lm23100 Lm25200 Lm28000 Lm21700 Lm23800 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULRoHS
- EnvironmentIP67HazardousHealthcare General
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHTL3
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
