Solas Ray Lighting

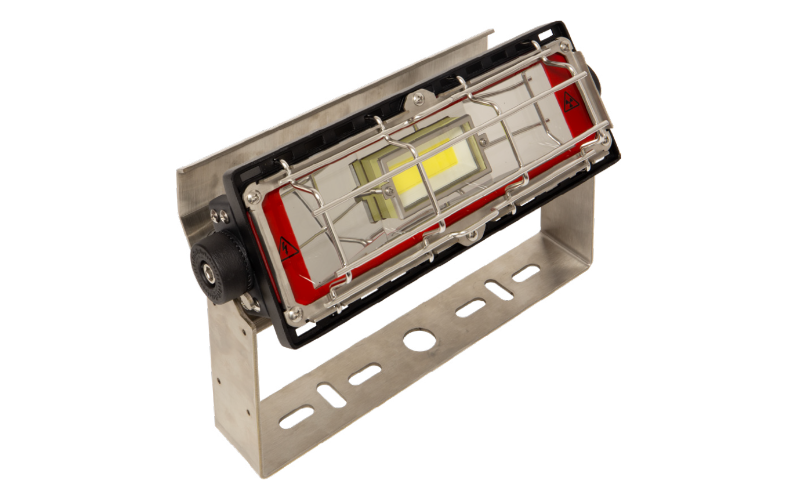

PPD-RH. Radiation Hardened Industrial LED Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION
• Radiation hardened LED task light engineered for temperature extremes, wet environments, and long term reliability.
• Certified radiation resistance up to 300kGy / 30Mrad (megarad)
• Features radiation-resistant components and multiple shielding solutions to increase longevity in high radiation environments.
• LED module features several layers of radiation protection.
• Ambient temperature range of -80°C (-112F) to 115°C (239°F).
• Great solution for punishing environments.
• Proprietary Driver-on-board (driver-less) LED modules.
• Replaceable LED modules for low long term cost and long fixture life.
>15kV surge protection.
• Available in single, double or triple configurations.
• High vibration resistance featuring Nord-Lock® washers.
• Optional chemical repellent PVDF coating for extra tough corrosion resistance.
• AWM style 4476 – 600V / 200°C rated power cord / stainless steel cable gland.
• Trade Agreement Act Compliant.
• *Not rated for safety-related nuclear zones. See information at the bottom of this page.
• Certified radiation resistance up to 300kGy / 30Mrad (megarad)
• Features radiation-resistant components and multiple shielding solutions to increase longevity in high radiation environments.
• LED module features several layers of radiation protection.
• Ambient temperature range of -80°C (-112F) to 115°C (239°F).
• Great solution for punishing environments.
• Proprietary Driver-on-board (driver-less) LED modules.
• Replaceable LED modules for low long term cost and long fixture life.
>15kV surge protection.
• Available in single, double or triple configurations.
• High vibration resistance featuring Nord-Lock® washers.
• Optional chemical repellent PVDF coating for extra tough corrosion resistance.
• AWM style 4476 – 600V / 200°C rated power cord / stainless steel cable gland.
• Trade Agreement Act Compliant.
• *Not rated for safety-related nuclear zones. See information at the bottom of this page.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.33"L: 12.63"23.57"34.67"H: 5.47"
- Light SourceLED
- CCT/Color5000K
- CRI70
- Watt(Approx)20 W40 W35 W60 W70 W105 W
- Lumens(Approx)2500 Lm5000 Lm4375 Lm7500 Lm8750 Lm13125 Lm
- OpticsDirectFlood
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegral120V277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentHazardousIP68
- Mounting TypeBrackets
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
