Solas Ray Lighting

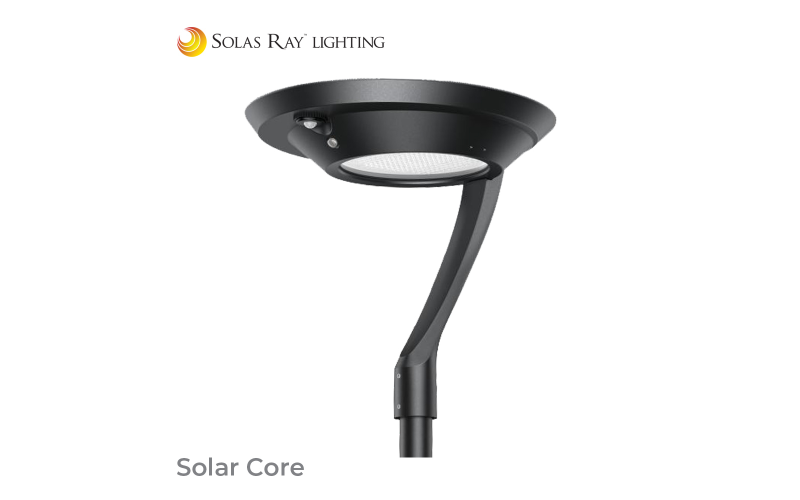

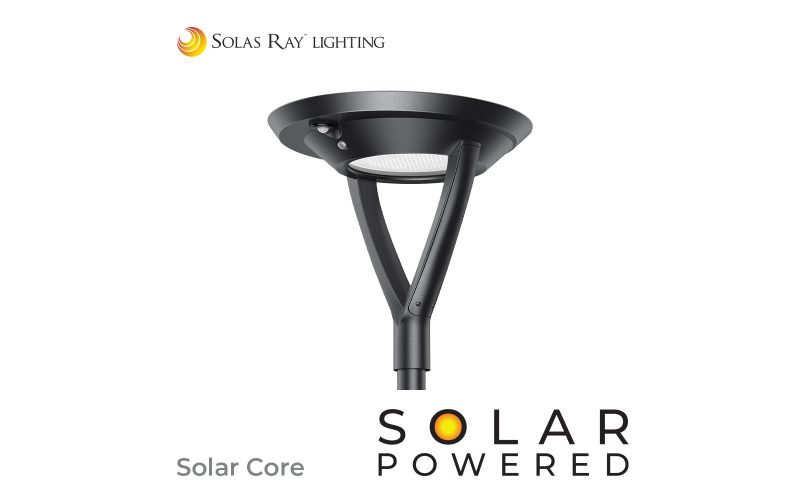

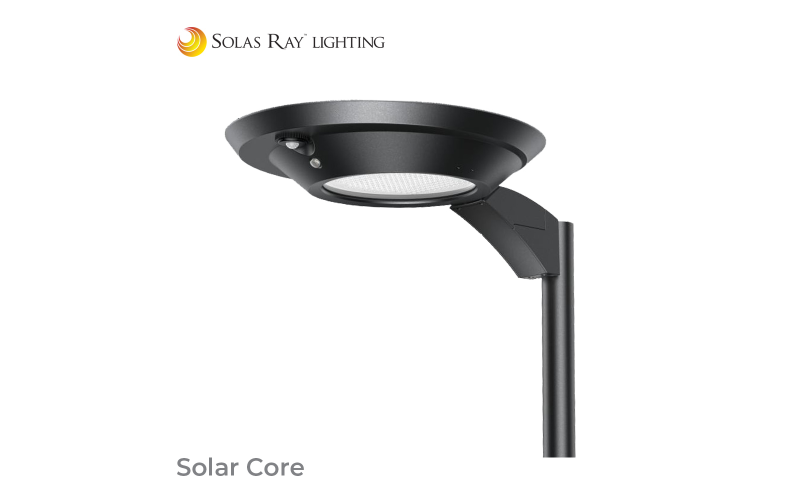

SOCR. The Solar Core™ Solar Powered LED Area Light.
Configure
Add to project
RESOURCES
DESCRIPTION
• Convenient LED light, solar panel, and battery integrated into a single unit.
• 5,550 lumens in a 30W package with a high capacity battery.
• Highly efficient 185 lm/W
• High conversion efficiency mono-crystalline photovoltaic solar panel.
• Long life and high temperature resistance LiFePO4 battery.
• 10.1 hour charge can power light 4 to 6 days in intelligent control mode with factory settings.
• Built in microwave motion sensor.
• 2° tilt to reduce dust and rainwater accumulation.
• Highly durable with IP66 ingress protection and IK08 impact resistance.
• C3 (ISO 9223:2012) rated corrosion resistance.
• Hybrid dual-powered option available – AC power takes over if battery is low.
• Highly efficient MPPT type charge converter.
• 5,550 lumens in a 30W package with a high capacity battery.
• Highly efficient 185 lm/W
• High conversion efficiency mono-crystalline photovoltaic solar panel.
• Long life and high temperature resistance LiFePO4 battery.
• 10.1 hour charge can power light 4 to 6 days in intelligent control mode with factory settings.
• Built in microwave motion sensor.
• 2° tilt to reduce dust and rainwater accumulation.
• Highly durable with IP66 ingress protection and IK08 impact resistance.
• C3 (ISO 9223:2012) rated corrosion resistance.
• Hybrid dual-powered option available – AC power takes over if battery is low.
• Highly efficient MPPT type charge converter.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 22.17"L: 22.17"H: 8.66"20.94"21.7"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI80
- Watt(Approx)30 W
- Lumens(Approx)5550 Lm
- OpticsDirectType IIType V
- Adjustable
- DimmingDim to 3-10%
- Controls/Network
- Power/VoltageSolar
- Integral Emergency
- Lumen Maintenance102000 h
- CertificatesRoHS
- EnvironmentIP66
- Mounting TypePole/Mast ArmPole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSOCR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
