Solas Ray Lighting

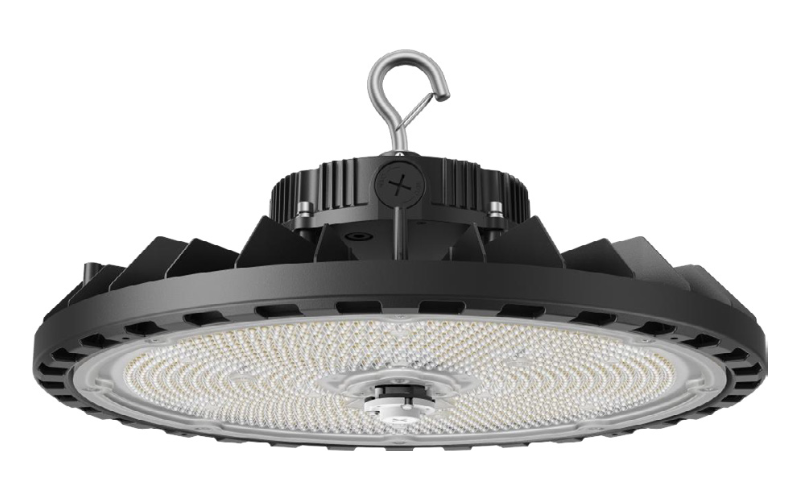

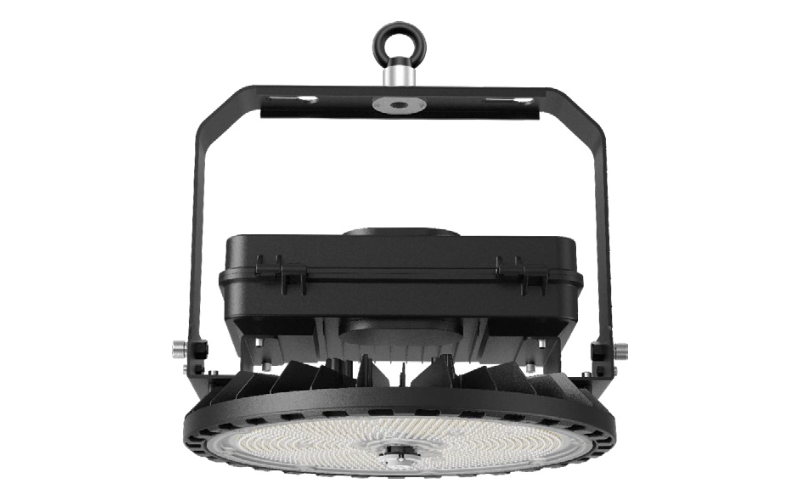

VRT. The VERTEX Selectable LED High Bay.
Configure
Add to project
RESOURCES
DESCRIPTION
- High efficiency LED high bay with selectable wattage and color temperature.
- 3 selectable wattages per model.
- 2 selectable color temperatures per model (4000K / 5000K).
- 150 lumens per watt standard.
- DLC 5.1 premium listed*.
- 5 sizes available ranging from 8,900 lumens to 79,100 lumens.
- RA80 CRI standard for accurate color rendering.
- IK08 impact rating for extra durability.
- 0-10v dimmable.
- 6KV L-N, 6KV L/N-E surge protection (6KV L-N, 10KV L/N-E 277-480V models)
- Programmable PIR and microwave motion sensors available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.76"10.47"11.81"17.72"L: 9.76"10.47"11.81"17.72"H: 7.40"7.74"7.83"9.49"10.59"7.17"7.44"7.56"11.10"11.14"9.06"16.22"19.72"
- Light SourceLED
- CCT/Color4000K5000KField Select CCT
- CRI80
- Watt(Approx)100 W150 W200 W300 W500 Wswitchable
- Lumens(Approx)15300 Lm22800 Lm30000 Lm49200 Lm79100 Lmswitchable
- OpticsDirectFloodWide FloodGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V277V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesETLDLC*
- EnvironmentIP65
- Mounting TypePendantTrunnion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVRT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
