Solavanti Lighting

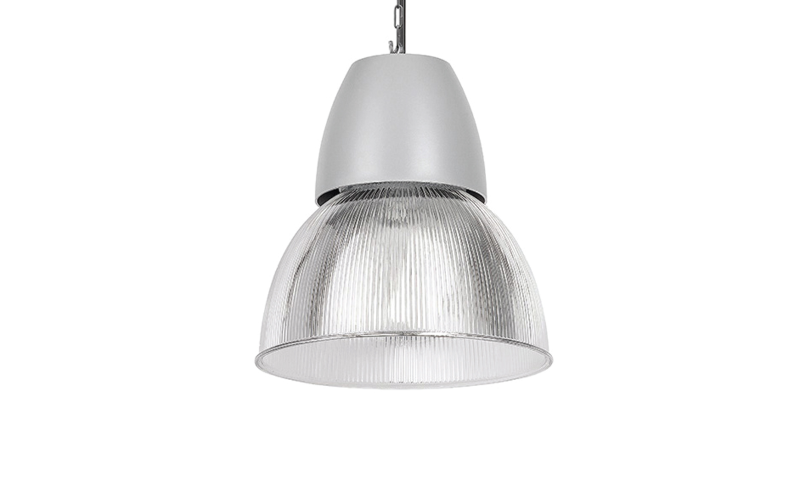

CAP Highbay series.
Configure
Add to project



RESOURCES
DESCRIPTION

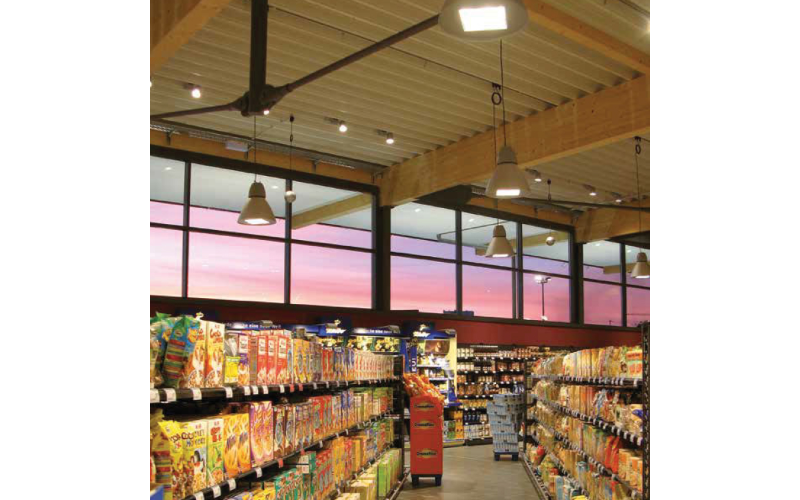

LED pendant for presentation of goods and general lighting. Outstanding ease of maintenance. No UV and thermal emissions. Thermal management with passive cooling. Prismatic acrylic glass reflector with bayonet catch. Conical technique unit made from polycarbonate. Inner specular reflector made from high-quality aluminum 99.98%. Optional safety glass with retaining ring for inner reflector and luminaire fitted with anchor hook. Suspension to be ordered separately. Luminaire is ready-to-connect with ceiling box. LED converter integrated.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12.5"L: 12.5"H: 13.6"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI80
- Watt(Approx)27 W36 W
- Lumens(Approx)2820 Lm3540 Lm
- OpticsDirectFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCAP
—
