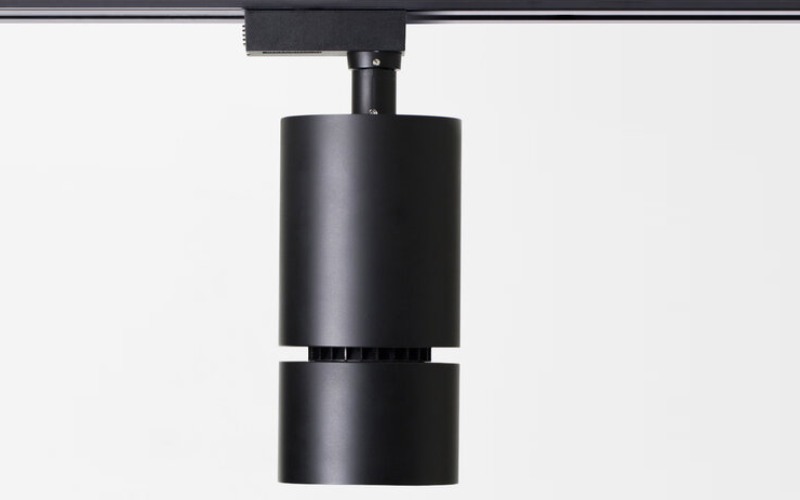

1790. STUDIO Large FULL SPECTRUM.
Configure
Add to project
RESOURCES
DESCRIPTION
Collection of LED track projectors for commercial applications. Timeless design with harmonious proportions this elegant series of projectors is suitable for most modern interiors. Proprietary heat sink design with exceptional thermal performance yields reliable color consistency and output performance during the life of the product.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/2"L: 4 1/2"H: 12"12 5/8"12 1/2"14 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500KFull Spectrum
- CRI90
- Watt(Approx)35 W49 W
- Lumens(Approx)2600 Lm3395 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeTrack/BuswayCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time1790-FS
