3654/3664. LINEAR LASER BLADE Surface - Single Module Remote.
Configure
Add to project
RESOURCES
DESCRIPTION

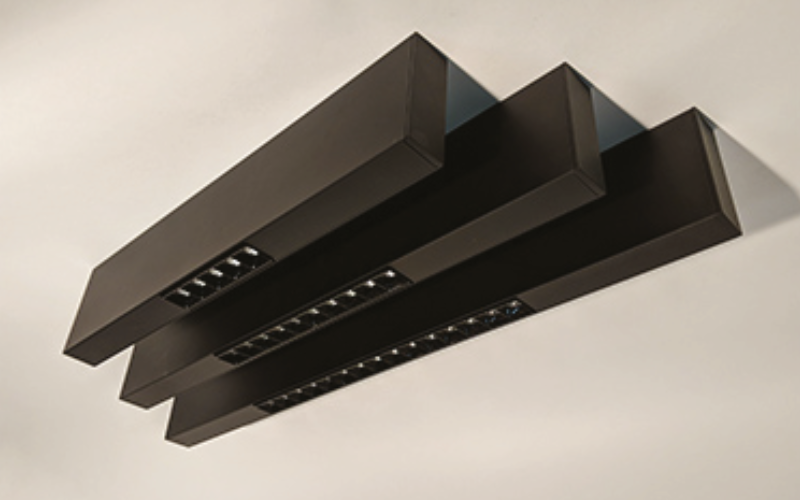

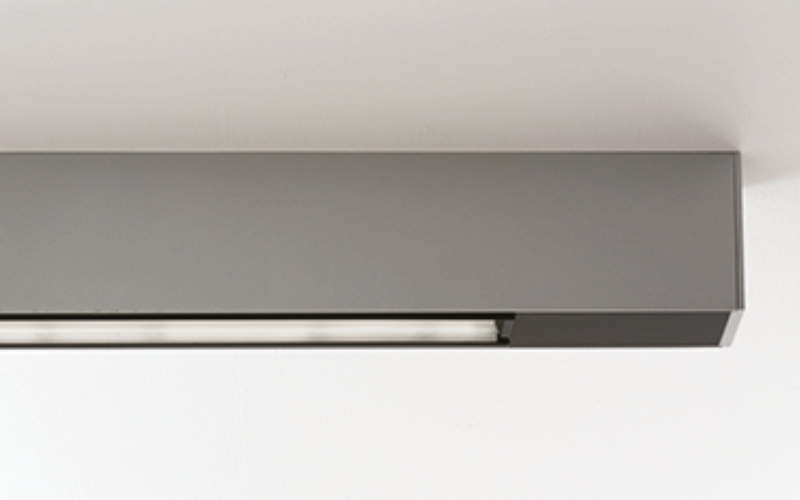

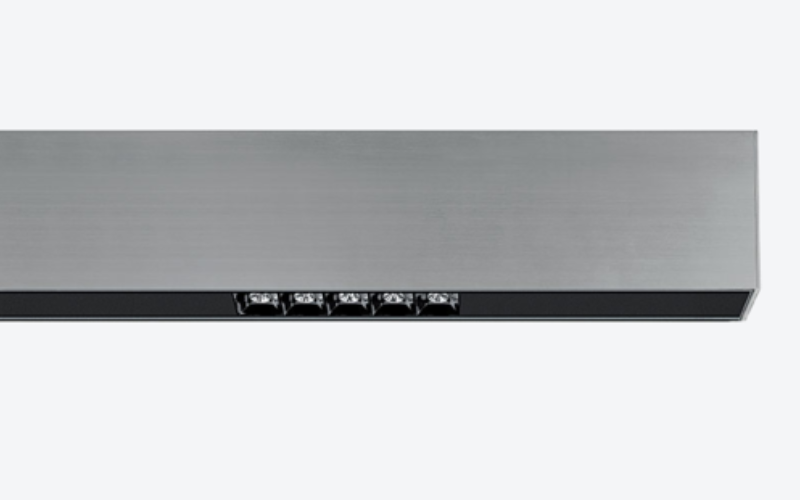

Elegant LED profile systems with small aperture, only 1.5". Available in two different sizes. Modular continuous systems configured to obtain bespoke solutions by incorporating Laser Blade modules from iGuzzini.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/2"L: 5 3/4"11"16 1/4"H: 4 5/8"3 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI92
- Watt(Approx)9.8 W20 W29 W
- Lumens(Approx)861 Lm1681 Lm2542 Lm
- OpticsDirectNarrowMediumFloodWide FloodGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time3654/3664-S-REM
