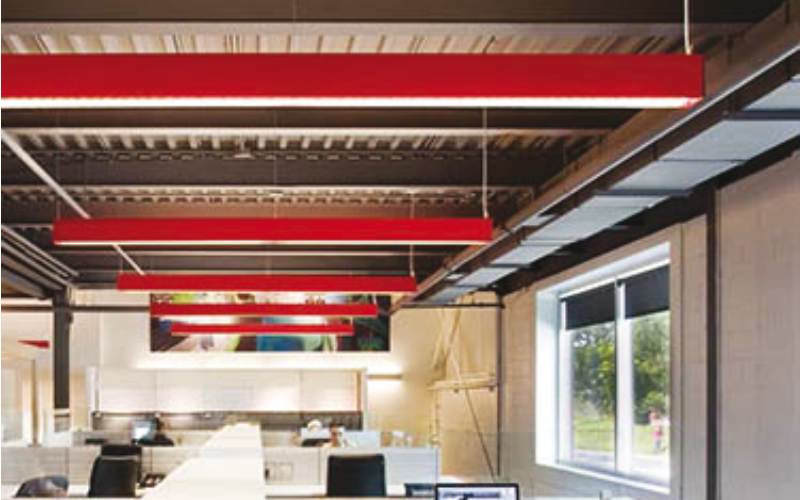

8606. CANALE Pendant Up and Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
Proprietary industry leading linear LED platform with superior thermal management that yields reliable color consistency and output performance. Available as single module or continuous runs. Suitable for interior applications where general lighting is desired.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/4"L: 23 3/8"35 1/4"47"70"93 1/2"140 1/8"186 5/8"279 7/8"Run length (Ft)H: 4 5/8"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI85
- Watt(Approx)5 W/Ft7.5 W/Ft10 W/Ft10.5 W/Ft
- Lumens(Approx)443 Lm/Ft395 Lm/Ft650 Lm/Ft585 Lm/Ft745 Lm/Ft830 Lm/Ft
- OpticsDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time8606
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
