SGHO. GHOST Linear.
Configure
Add to project




RESOURCES
DESCRIPTION

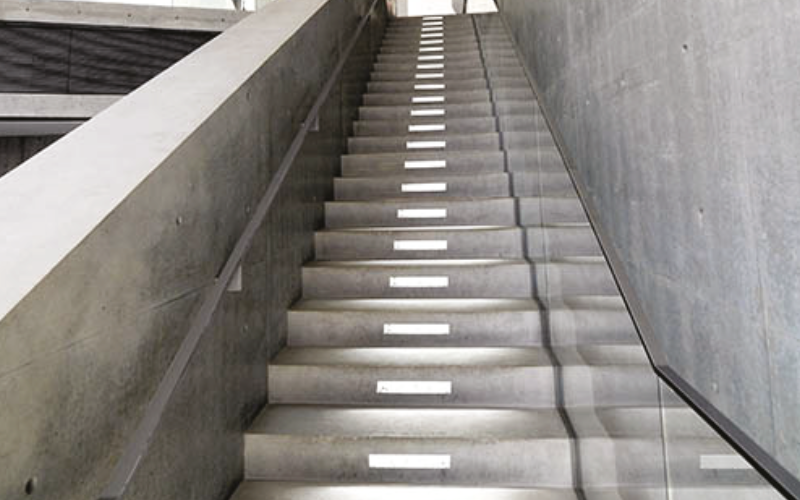

Unique lighting system for wall recessed lighting in exterior applications. The system consists of a series of concrete forming boxes designed to create a cavity in the wall during the concrete forming process. The resulting void in the wall houses the LED light module, which is concealed from view. Designed for low mounting heights with downward asymmetric light distribution. Low luminance with light source regressed inside the luminaire and shielded from all viewing angles
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 9 1/2"17"31 7/8"61 7/8"H: 1 1/7"
- Light SourceLED
- CCT/Color3000K4000K
- CRI80
- Watt(Approx)4 W7.5 W14 W28 W
- Lumens(Approx)265 Lm530 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentIP65
- Mounting TypeWall Recessed
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
SGHO-L
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
