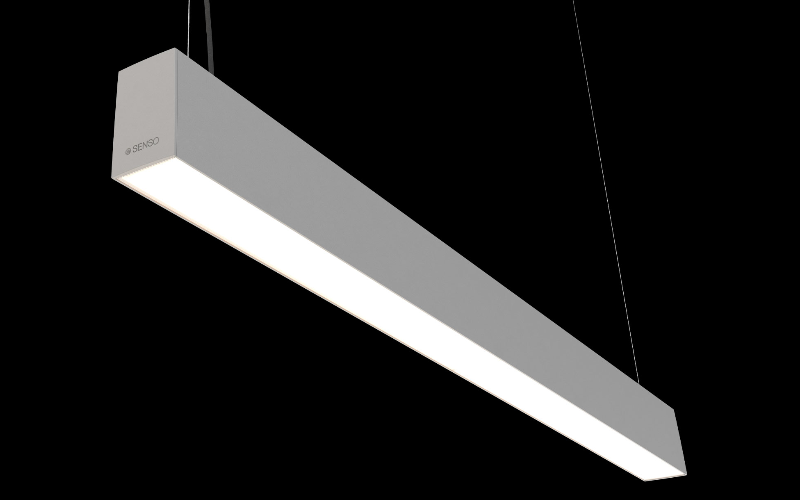

Vesta 1 - Pendant Linear LED system. Part of the Vesta collection, the Vesta 1 Pendant Linear LED system offers performance, flexibility and aesthetics. A unique
SENSO design, the subtly flared Vesta 1 features a symmetrical, high-performance frosted lens, illuminating the lens surface evenly with no shadows or dark spots.
With integrated drivers and controls, this fixture is easy to install and widely applicable. Vesta 1 offers both direct and indirect lighting options, allowing you to switch on the light sources independently or in unison.

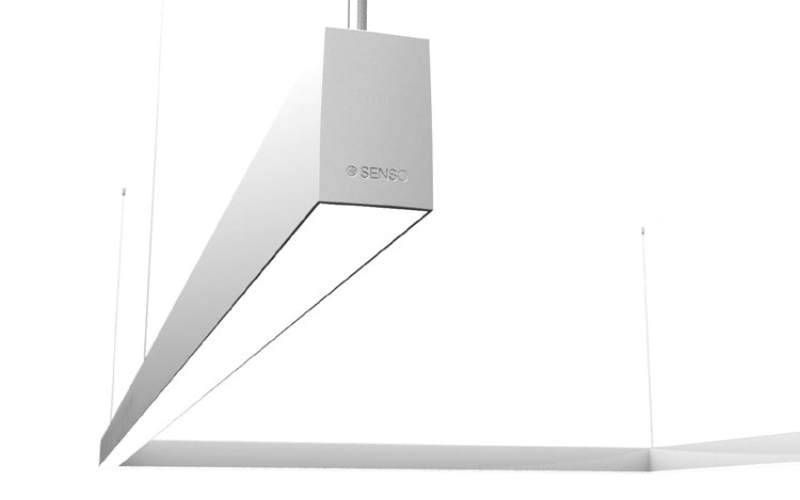

Full-length seamless lenses range from 4 to 12 feet. Available in L-, T- and X-shaped nodes, the Vesta 1 system can readily adapt to any configuration.
SENSO design, the subtly flared Vesta 1 features a symmetrical, high-performance frosted lens, illuminating the lens surface evenly with no shadows or dark spots.
With integrated drivers and controls, this fixture is easy to install and widely applicable. Vesta 1 offers both direct and indirect lighting options, allowing you to switch on the light sources independently or in unison.
Full-length seamless lenses range from 4 to 12 feet. Available in L-, T- and X-shaped nodes, the Vesta 1 system can readily adapt to any configuration.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.56"L: 23”45.5”68”90.5”113”135.5”Run length (Ft)H: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)3.8 W/Ft3.9 W/Ft5.7 W/Ft5.6 W/Ft9.4 W/Ft7.4 W/Ft12 W/Ft15 W/Ft
- Lumens(Approx)400 Lm/Ft454 Lm/Ft566 Lm/Ft628 Lm/Ft788 Lm/Ft843 Lm/Ft1034 Lm/Ft1220 Lm/Ft
- OpticsDirectIndirectGeneral DiffusedAsymmetric/WashBatwingBatwing Indirect/General DirectAsymmetric Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Ecosystem DigitaleldoLED SOLO DALIeldoLED SOLO 0-10VDMX
- Controls/NetworkCasambiIntegral Sensor
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesUL/CULRoHS
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
