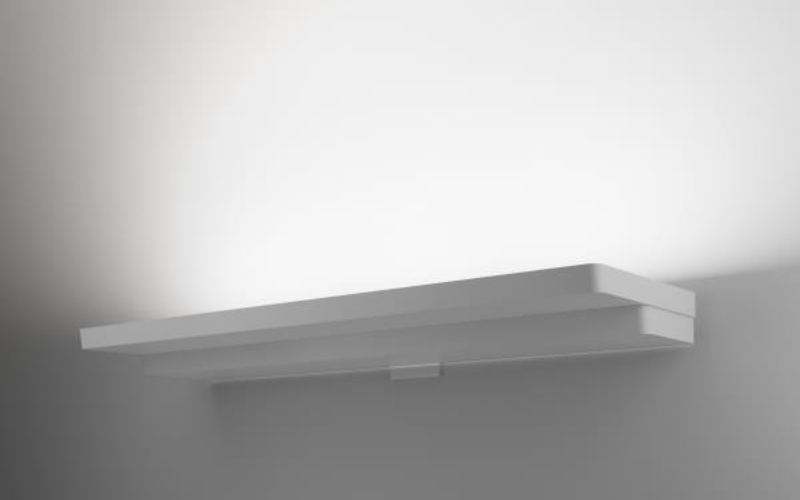

EEW12173. Echo Blade - Exterior 45 in.
Configure
Add to project
RESOURCES
DESCRIPTION
Echo Blade is the slimmest, most discreet high output asymmetric lighting tool on the market. It combines high output density with outstanding quality in a sleek, new architectural form that performs as great as it looks. With a profile just over 3”, SPI Lighting’s Echo Blade can deliver from 11,000 to 33,000 lumens. Specially constructed for wet locations, this IP66 rated luminaire is ideal for illuminating canopies with comfortable, glare-free light. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 45"L: 13.1"H: 3.1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)324 W
- Lumens(Approx)32983 Lm
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance72000 h
- CertificatesETLMade in USABAA
- EnvironmentIP66
- Mounting TypeYoke
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEEW12173
