SPI Lighting
EIW12398. Echo Blade Micro Max.
Configure
Add to project
RESOURCES
DESCRIPTION

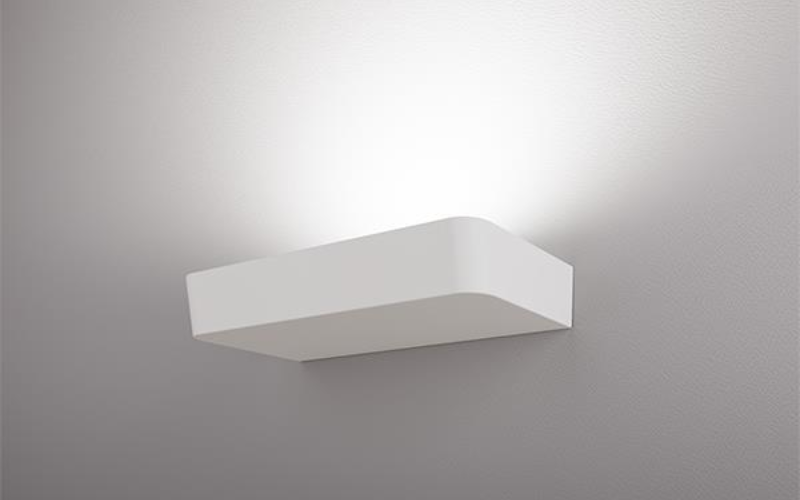

Our Smallest, most powerful, and most versatile asymmetric lighting tool. Designed to be a discreet powerhouse, this fixture delivers up to 5,000 lumens, has 6 optical distributions, and can be utilized in both indirect and direct applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 9.1"H: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)22 W44 W
- Lumens(Approx)2466 Lm4931 Lm
- OpticsIndirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/NetworkLutron®
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance72000 h
- CertificatesETLMade in USAADABAA
- EnvironmentDamp
- Mounting TypeWall SurfaceYoke
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEIW12398
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
