SPI Lighting (Lighting Innovations)

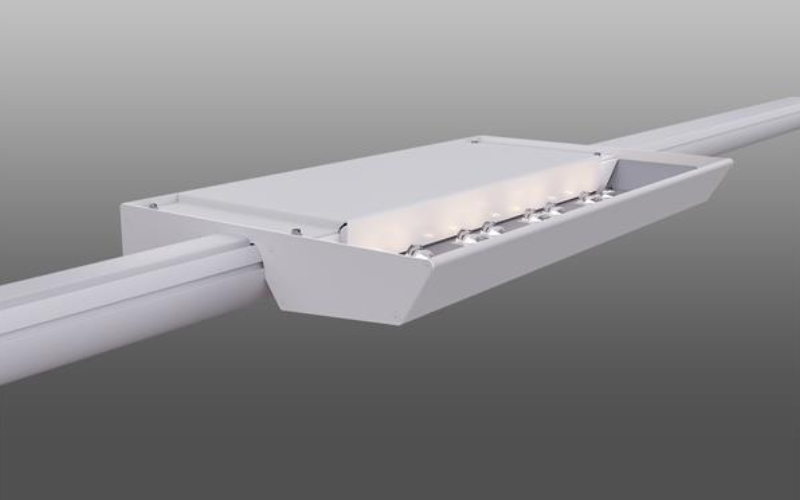

LRU12466. RAIL (Re-Engineered) 22.20 in.
Configure
Add to project
RESOURCES
DESCRIPTION
With a slim 2.3" profile, RAIL brightly illuminates large spaces powerfully and efficiently. Mounted on a single rail, the system's streamlined design blends seamlessly with ceiling construction. Housings clamp over the rail and are self-supporting without tools, simplifying installation and maintenance. It's an elegant way to safely light natatoriums or other high ceiling applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 12.4"L: 22.2"H: 2.4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)144 W
- Lumens(Approx)18259 Lm
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/NetworkLutron®nLight®NX Wireless
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDampNatatorium
- Mounting TypeMonorail
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLRU12466
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
