Spitzer Lighting

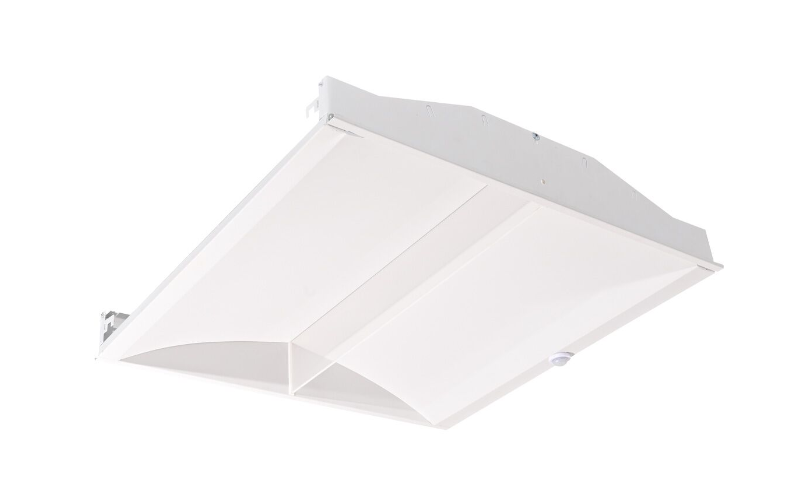

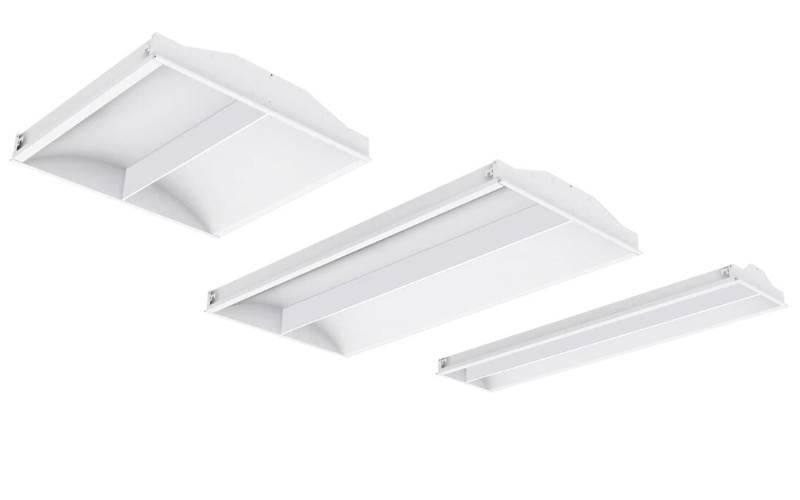

ED. EDGE Direct Vertical-Lit Architectural Troffer.
Configure
Add to project
RESOURCES
DESCRIPTION
The Edge Architectural luminarie use direct vertical lit LED technology to create a visual comfortable indirect illumination
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3500K4000KTunable WhiteField Select CCT
- CRI80
- Watt(Approx)20 W30 W40 Wcustomswitchable
- Lumens(Approx)2400 Lm2300 Lm2700 Lm3400 Lm4300 Lm3200 Lm4000 Lm3800 Lm4600 Lmcustomswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V347V
- Integral EmergencyEM Integral
- Lumen Maintenance56000 h
- CertificatesETL
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling Recessed
- HousingNew Construction
- Housing Depth3.63 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeED
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
