Sure-Lites (Cooper Lighting Solutions)

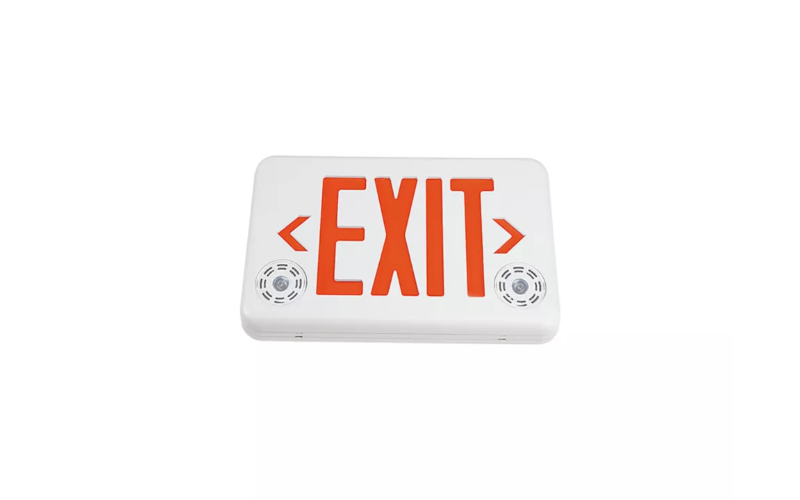

LPXCG55SF/LPXCR55SF. Connected Emergency Lighting.
 Configure
 Add to project
DESCRIPTION
The LPXC combo series is a UL 924 code compliant solution for exit and emergency requirements. It is designed to operate for a minimum of 90 minutes during a power outage. It features a polycarbonate housing, LED sources for both the exit and the emergency heads, as well as a labor saving self-diagnostic option that automatically performs required NFPA testing. The LED emergency heads are available with 55 feet of egress coverage. The LED source and battery require no maintenance. The FirstLink feature with the app results in self-testing and compliance data reporting (via Bluetooth.)
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 1/8"
    L: 13 3/4"
    H: 8 11/16"
  • Light Source
    LED
  • CCT/Color
  • CRI
  • Watt(Approx)
  • Lumens(Approx)
  • Optics
    DirectDirect View
  • Adjustable
    Adjustable
  • Dimming
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    UL/CUL
  • Environment
    Damp
  • Mounting Type
    Ceiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
