Solid State Luminaires

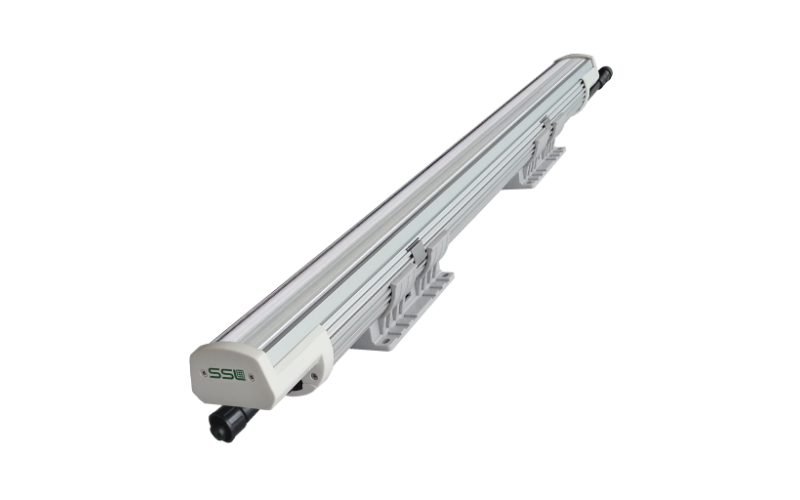

ECVLWET-250. eCoveLine WET 250.
 Configure
 Add to project
DESCRIPTION
eCoveLine WET 250 (ECVLWET-250) is similar in use to the other Wet Cove series but with a lower lumen output for a lower placement above the ground, approximately 10-15 feet high. eCoveLine WET 250 comes in a 1 ft, 4 ft or 6 ft nominal lengths and 2700K, 3000K, 3500K or 4000K color temperatures. The housing is constructed of extruded aluminum with tooled end caps and is IP66 rated for interior & exterior use. Features IP68 line voltage Plug N’ Play connectors for easy installation. Power supply is integral, no remote driver required. Universal orientation luminaire; up, down, horizontal or vertical positioning with 120° optic beam pattern. Flicker free dimmable to 3% full brightness with ELV trailing edge dimming.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.77"
    L: 1 Ft4 Ft6 Ft
    H: 1.9"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    84
  • Watt(Approx)
    3.5 W/Ft
  • Lumens(Approx)
    225 Lm/Ft250 Lm/Ft263 Lm/Ft275 Lm/Ft
  • Optics
    IndirectWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%ELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    Integral120V220-240V277V
  • Integral Emergency
  • Lumen Maintenance
    70000 h
  • Certificates
    ETL
  • Environment
    IP66
  • Mounting Type
    Ground Spike/StakeWall Arm/CantileverSurface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
