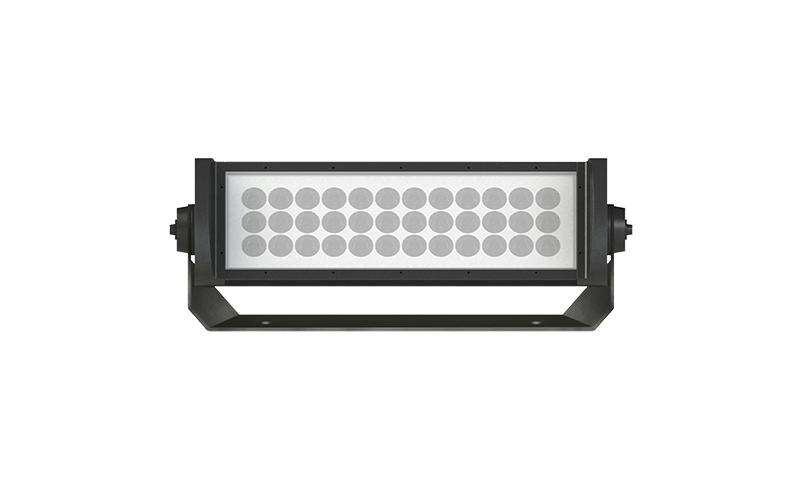

LZF. Lazer Flood Over 1 Million Candela with a Single Module.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
ColourLine Lazer is a powerful white LED that delivers over 1 million candela and uses a unique optical system that offers one of the most impressive long-casting lighting solutions in the market. It’s part of our Lazer Series featuring high-performance, super optic luminaires with long-throw grazer, wall wash, flood and spot flood capabilities. ColourLine Lazer delivers over 1 million candela using it’s native 3° optic with a Single Module unit, which has the capability to throw light over 980 feet away. ColourLine Lazer installs with an integrated steel yoke mount. The single-piece steel yoke mount design uses compound angled corners for added strength and rigidity. There are three different sizes to support the 1, 2 & 3 Module units. Each end of the fixture has a 180° incremental adjustment for setting light direction.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.25"L: 26.9"H: 9.63"17"25"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI83
- Watt(Approx)100 W
- Lumens(Approx)7074 Lm
- OpticsDirectGrazingFloodWide Flood
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETL
- EnvironmentIP66
- Mounting TypeYoke
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
