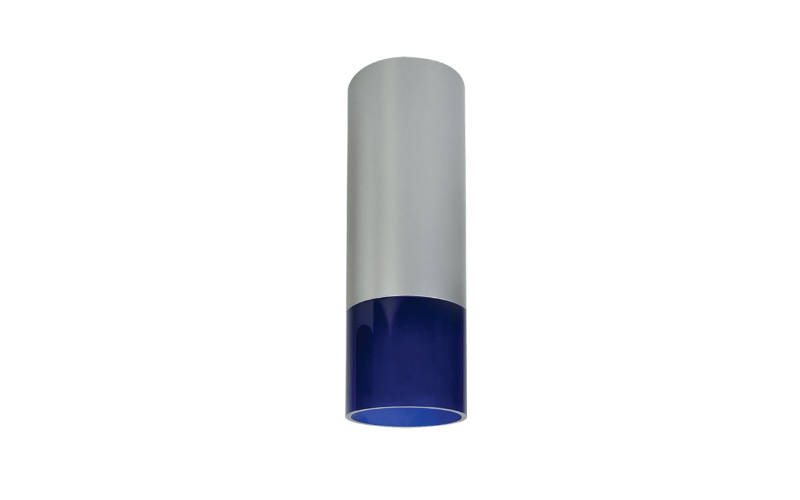

SSC2.5DR. 2.5'' Interior Cylinder with Drop Diffuser.
Configure
Add to project


RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
We've added some flare to our SSL Interior Cylinders with this introduction of the Drop Diffusers in frosted, amber, red and blue. Already known for their ultra-clean look and high performance specification, these luminaires continue to fit the spec communities application demands. Inspired by design application and wanting to create a more unique human experience, the precision machined drop diffusers do just that. Elegant, mysterious and FUN. These SSC2.5 interior cylinders feature a small aperture and body which adds to it’s seamless, fastener free look. It’s engineered to combine maximum performance in a minimalist style cylinder. Our team produced a high-powered interior luminaire that effectively produces ample lighting, efficiently controls heat and has a pleasing aesthetic. Standard polyester powder coat finishes include black, bronze, silver and white with custom or RAL colors also available. Draw the viewer’s attention up into the vertical space of your interior design using architectural lighting accented with eye-catching drop diffusers.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.95"L: 2.95"H: 8.85"12.1"16.1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93
- Watt(Approx)4 W8.5 W14 W
- Lumens(Approx)500 Lm1000 Lm1500 Lm
- OpticsDirectNarrowMediumFlood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)eldoLED SOLO DALIeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLMade in USARoHS
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall SurfaceYokeConduit Mount
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
