Solid State Luminaires

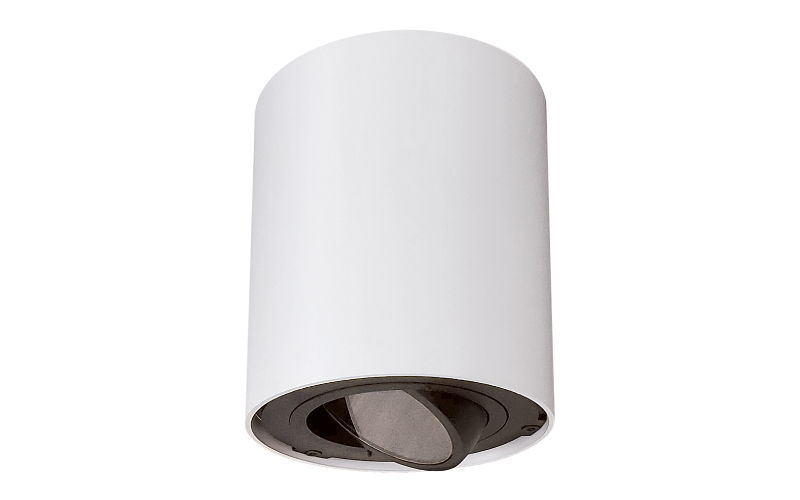

SSC8GAR. 8'' Adjustable Gimbal Ring Cylinders with Remote Driver and Battery Backup.
Configure
Add to project


RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
SSC8GA is a 8-inch round indoor cylinder with an adjustable gimbal ring to set lighting direction. It has surface, wall, and pendant mounting options for different application installations. The standard driver Tri-Dim includes 0-10V (dims to 1%), TRIAC and ELV. SSC8GA is marine grade, corrosion resistant, solid aluminum extrusion, die-cast aluminum components. The adjustable Gimbal Ring assembly can be rotated 359° and tilted (+/–) 32°, using an .050" hex driver to loosen set screws on the face, to set the light beam direction. It has an IK05 impact compliant, clear anti-glare tempered glass lens. Continuous silicone gasket to seal out contaminants, IP43 rated for dry or damp locations. It’s also vibration resistant, compliant with 1G ANSI C136.31, Seismic rated AC-156.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.35"L: 7.35"H: 10"12"14"16"18"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI93
- Watt(Approx)18 W23 W27 W34 W
- Lumens(Approx)2000 Lm2500 Lm3000 Lm3500 Lm
- OpticsDirectNarrowMediumWide Flood
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLMade in USAT24*
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSSC8GAR
—
