Structura

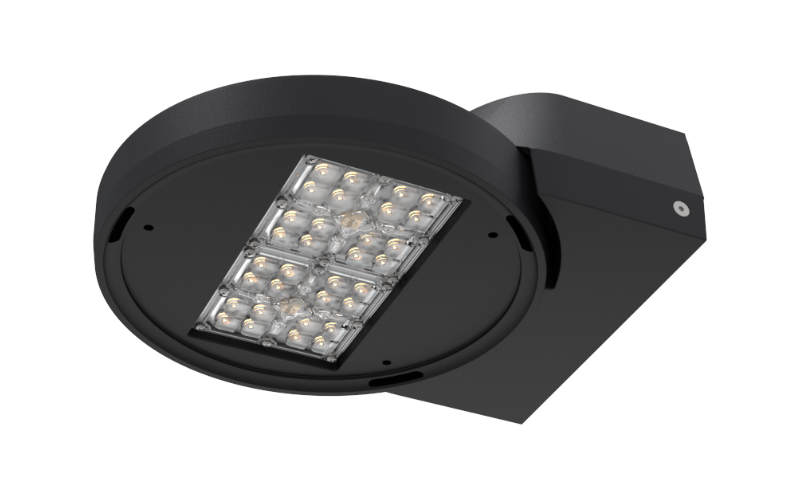

PORT. Round Pole or Surface Mount LED Luminaire.
 Configure
 Add to project
Structura. PORT Round Pole or Surface Mount LED Luminaire.
Structura. PORT Round Pole or Surface Mount LED Luminaire.
Structura. PORT Round Pole or Surface Mount LED Luminaire.
Structura. PORT Round Pole or Surface Mount LED Luminaire.
RESOURCES
DESCRIPTION
  • Surface or pole mounted version
  • Available in Type III, IV, and V distributions
  • Full-cutoff for dark skies applications
  • Standard 0-10V dimming
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 9 3/4"12"
    L: 10"8 5/8"
    H: 1 1/2"3 5/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    34 W63 W
  • Lumens(Approx)
    3563 Lm7126 Lm
  • Optics
    DirectGeneral DiffusedType IIIType IVType V
  • Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    CSA
  • Environment
    Wet
  • Mounting Type
    Pole/Post TopWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
