Spectrum Lighting

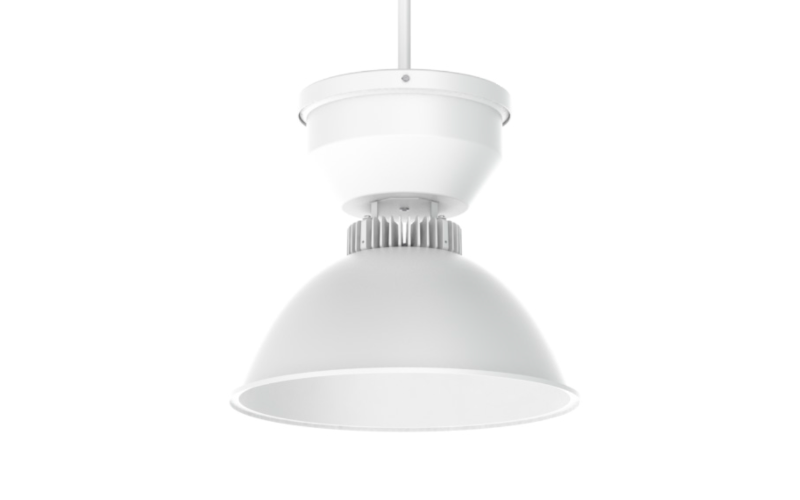

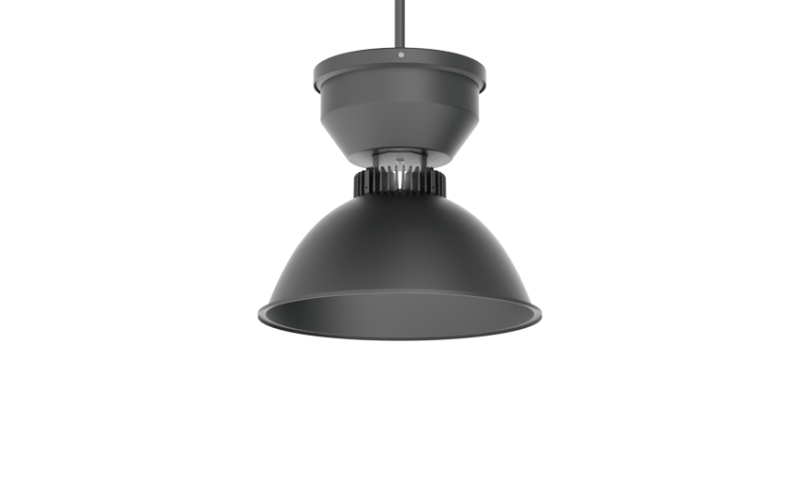

ALDCH16SGV. 16'' ALUMINUM DCH SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
16" Lumen Max GV series designed for performance high and mid level ceiling illumination. Aluminum reflector designed for maximum downlight. Shallow design fits a variety of applications. Shallow surface or pendant (DCH) for lower ceiling heights and wide distribution. Single-stage optical system for smooth light distribution. 80 CRI minimum. Consult factory for high CRI or special applications. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impact. Optional safety cable. Variety of optical lenses and mounting methods.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.3"L: 16.3"H: 14.7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)10 W18 W26 W39 W
- Lumens(Approx)1192 Lm2080 Lm3051 Lm4494 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDampCorrosion Resistant
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
