Spectrum Lighting

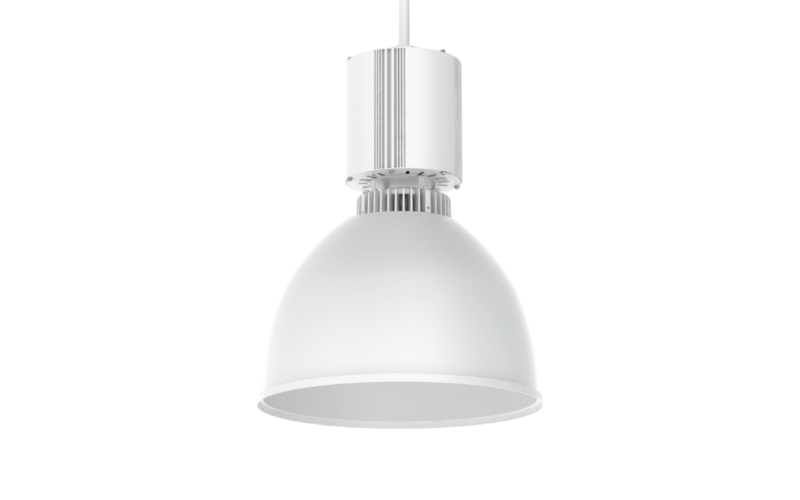

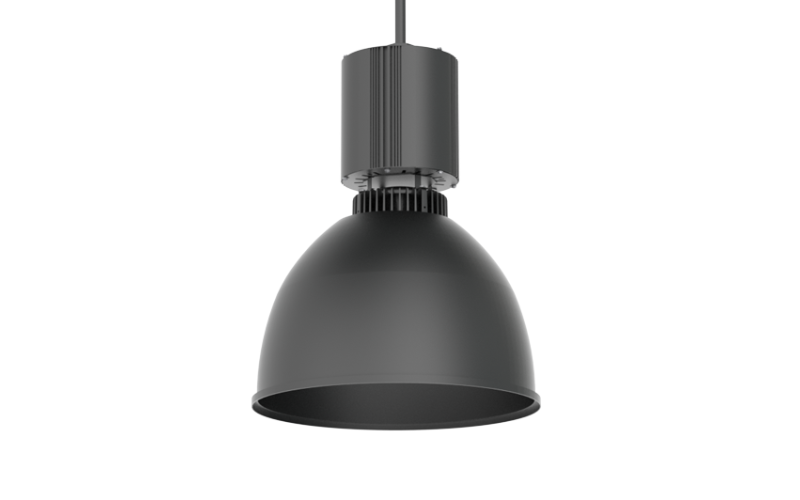

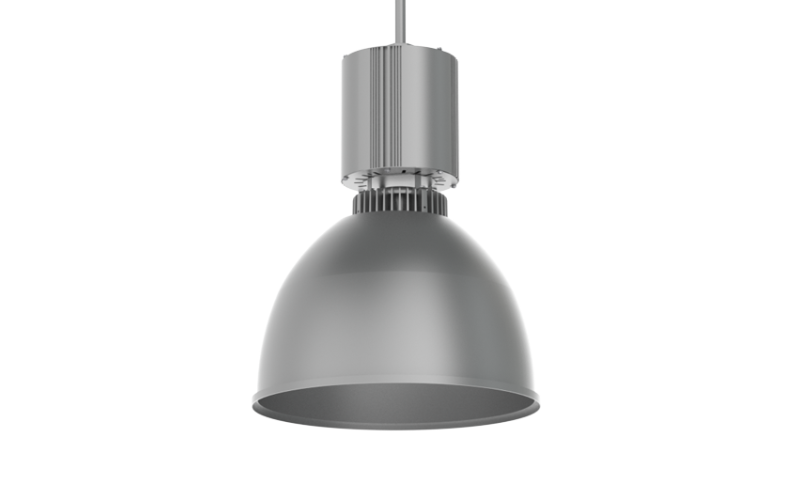

ALEXT16GV. 16'' ALUMINUM EXT SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
16" Lumen Max GV series performance pendant for low, and mid-bay applications. Aluminum reflector designed for maximum downlight. Extruded Fixture Housing (EXT) features a clean and modern design. Single-stage optical system for smooth light distribution. 80 CRI minimum. Consult factory for high CRI or special applications. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impact. Optional safety cable. Variety of optical lenses and mounting methods.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16"L: 16"H: 21"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80
- Watt(Approx)10 W18 W26 W39 W
- Lumens(Approx)1192 Lm2080 Lm3051 Lm4494 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDampCorrosion Resistant
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeALEXT16GV-RD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
