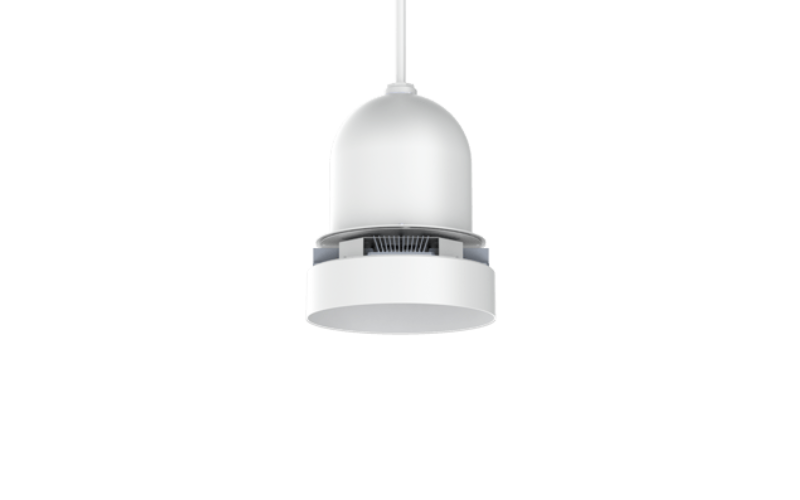

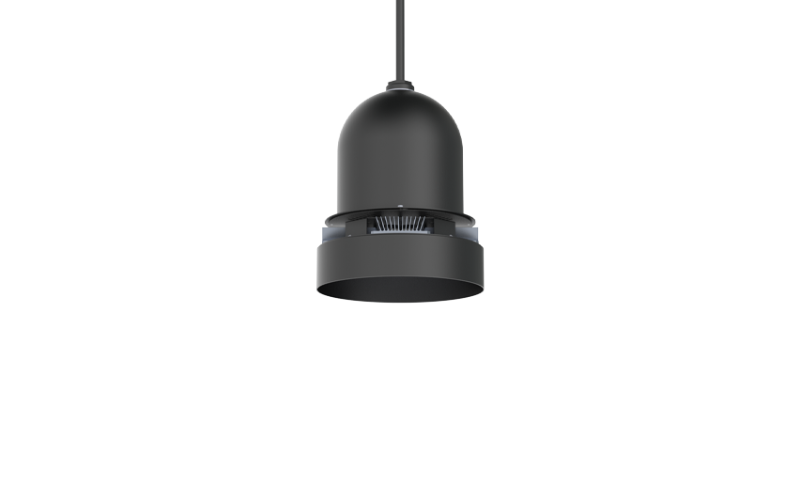

DHH1115GV. 12" Low/Mid/High Bay 14650 Lm Dome Housing.
Configure
Add to project
RESOURCES
DESCRIPTION
Lumen Max GV series performance pendant offers a unique design for low, mid-bay and high-bay applications. Domed Fixture Housing (DDH) features a contemporary design that is easy to maintain. Single-stage optical system for smooth light distribution. 80 CRI minimum. Consult factory for high CRI or special applications. LED module and driver designed for ease of maintenance and replacement. Optional safety cable. Variety of mounting methods.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 18.3"L: 18.3"H: 15"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)77 W102 W116 W
- Lumens(Approx)10988 Lm11914 Lm14651 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USABAA
- EnvironmentDampCorrosion Resistant
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDHH1115GV-RD
