Spectrum Lighting

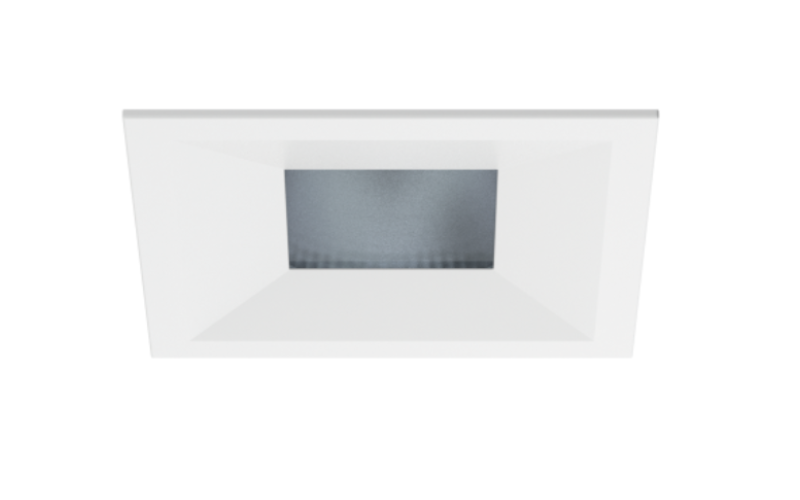

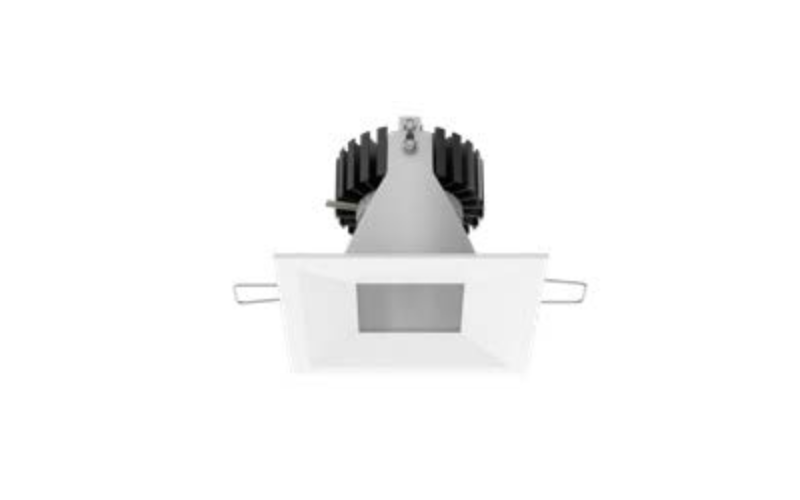

ES03SMF. 3'' SQUARE FLANGED REMODEL / RETROFIT SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
3" downlight and wall wash remodeling series with regress for visual comfort. Optional downlight lens for wet location applications. Zhaga international standard LED module for ease of maintenance and future replacement. Quick connect LED module and trim attachment.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: 4.5"
- Light SourceLED
- CCT/Color2700K3000K
- CRI90
- Watt(Approx)8.8 W14.5 W
- Lumens(Approx)356 Lm723 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%ELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USAEnergy Star*
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingRemodelRetrofit
- Housing Depth3.5 ''4.1 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeES03SMF-RT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
