Spectrum Lighting
IF03RSN. 3'' ROUND FLANGELESS SUPER SHALLOW IC NEW CONSTRUCTION.
Configure
Add to project
RESOURCES
DESCRIPTION

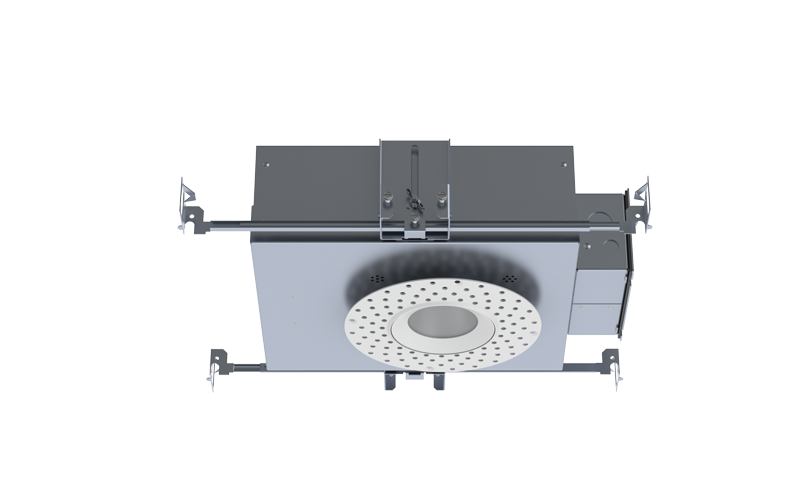

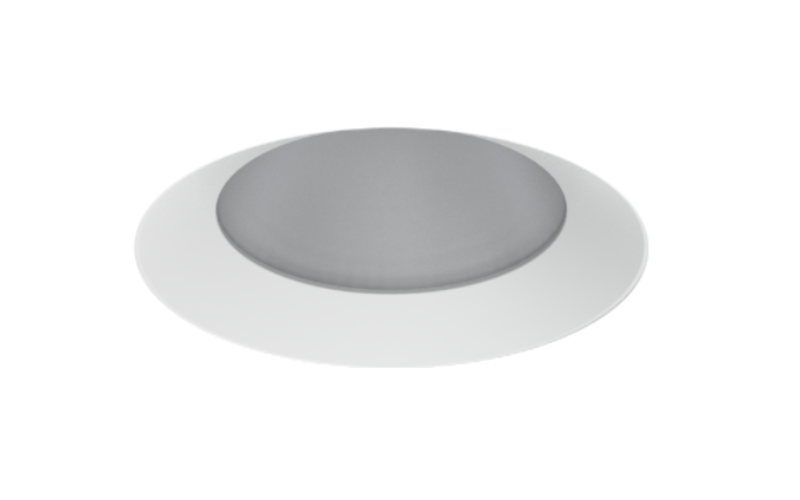

Versatile super shallow plenum 3" round recessed LED luminaire with a 4" deep IC housing, featuring downlight and wall wash flangeless trim options with insulated ceiling housing. Two-stage optical system for smooth low glare light distribution. Zhaga International Standard LED module for ease of maintenance and replacement. Shallow plenum design. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets. Expandable bar hangers with horizontal range of 14.2"-26", and vertical adjustment of 2.325". Posi-lock trim retention springs. Integral 0.625" collar, works with up to 1" ceiling. For thicker ceilings consult factory.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.8"L: 3.8"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K
- CRI90 80
- Watt(Approx)5 W7 W10 W
- Lumens(Approx)537 Lm751 Lm1046 Lm
- OpticsDirectMediumFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingICChicago Plenum
- Housing Depth4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeIF03RSN-PC-RA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
