PRAF22LX. 22" Mid/High Bay 13650 Lm Decorative Arms.
Configure
Add to project
RESOURCES
DESCRIPTION

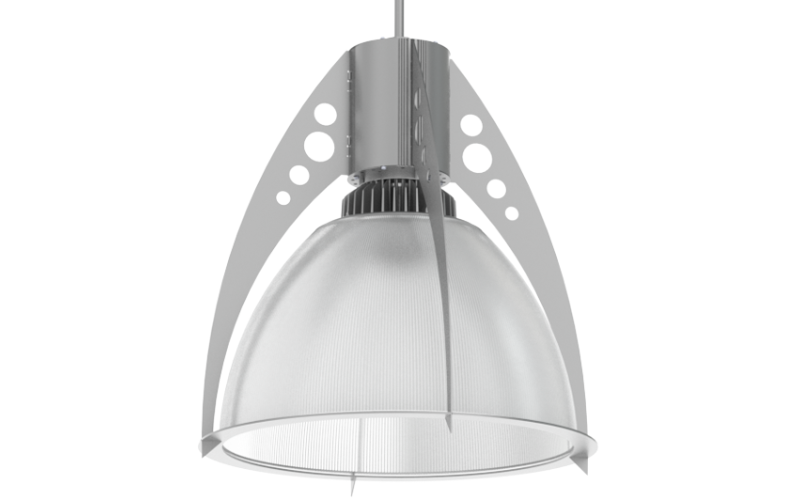

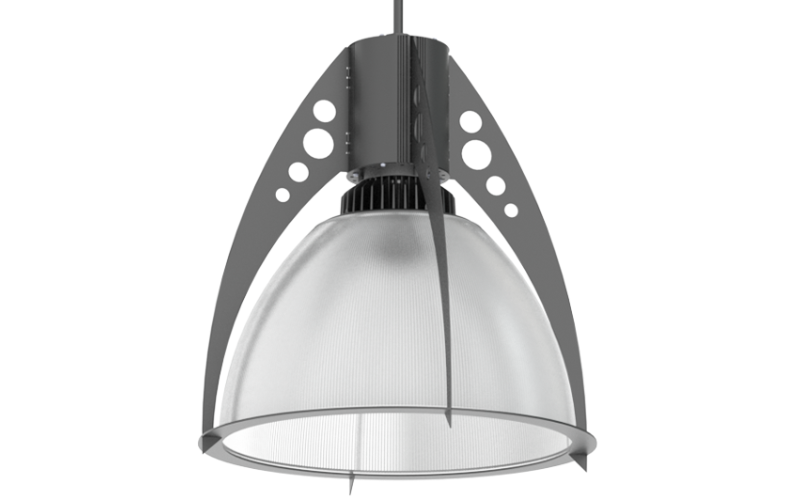

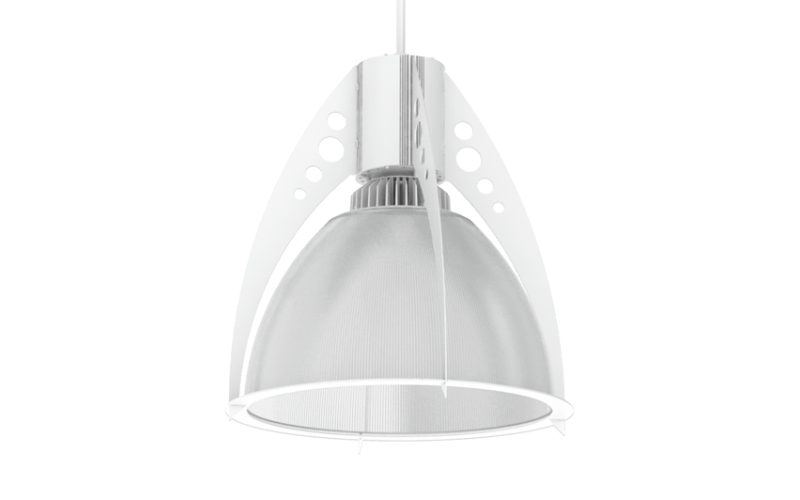

22" Arc Pendant evokes industrial age designs while using the latest LED technology for excellent general illumination. Prismatic refractor provides horizontal and vertical distribution. Laser cut decorative arm. Extruded Fixture Housing (EXT). Single-stage optical system for smooth light distribution. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impacts. Optional safety cable. Variety of mounting methods.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24.4"L: 24.4"H: 22.9"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)52 W80 W98 W107 W
- Lumens(Approx)7105 Lm10079 Lm12906 Lm13659 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USABAA
- EnvironmentDampCorrosion Resistant
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRAF22LX-RC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
