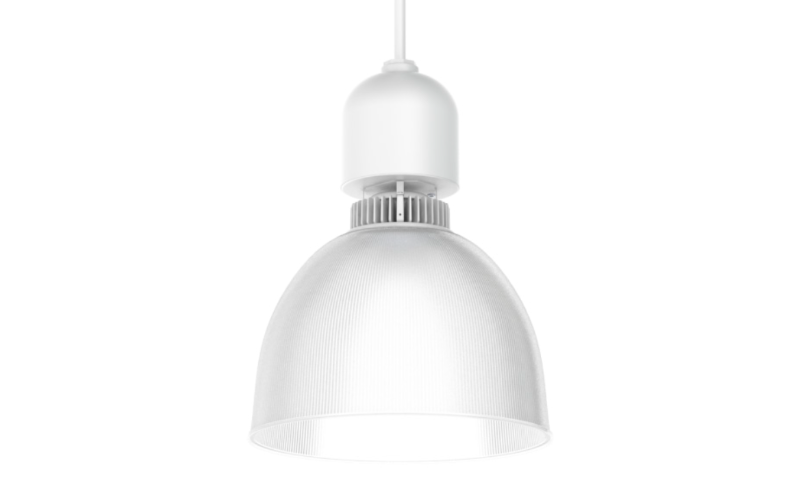

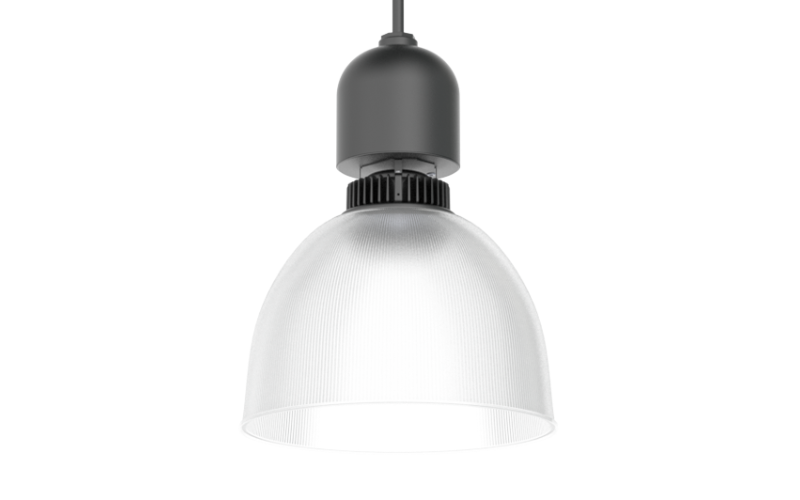

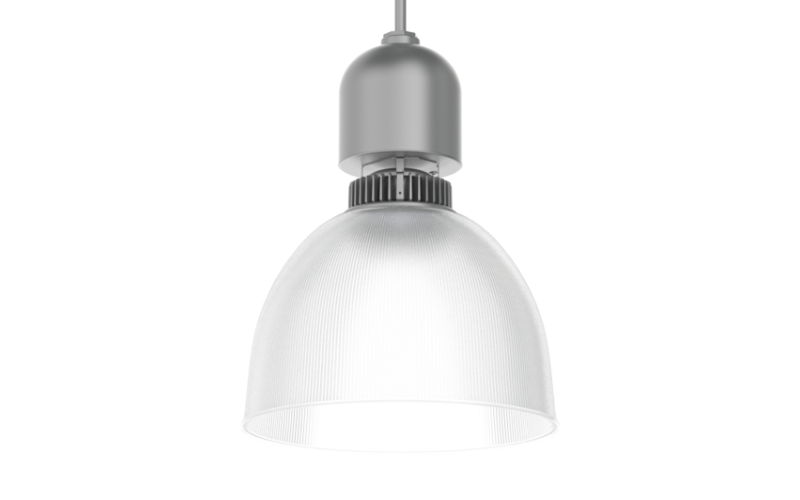

PRDDH16GV. 16'' PRISMATIC DDH SERIES.
Configure
Add to project
RESOURCES
DESCRIPTION
Quick Ship Surface highlights products that can ship in 5 - 10 working days. 16" Lumen Max series performance pendant for low and mid-bay applications. Prismatic refractor provides horizontal and vertical distribution. Domed Fixture Housing (DDH) features a contemporary design that is easy to maintain. Single-stage optical system for smooth light distribution. 80 CRI minimum. Consult factory for high CRI or special applications. LED module and driver designed for ease of maintenance and replacement. Posi-lock refractor retention ring will absorb shocks and impact. Optional safety cable. Variety of optical lenses and mounting methods.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.2"L: 16.2"H: 20.9"
- Light SourceLED
- CCT/Color3500K
- CRI80
- Watt(Approx)39 W
- Lumens(Approx)4832 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDampCorrosion Resistant
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRDDH16GV-RC_QS
