Spectrum Lighting
PRDDH16LEDLX. 16'' PRISMATIC DDH SERIES / DLC LISTED.
Configure
Add to project
RESOURCES
DESCRIPTION

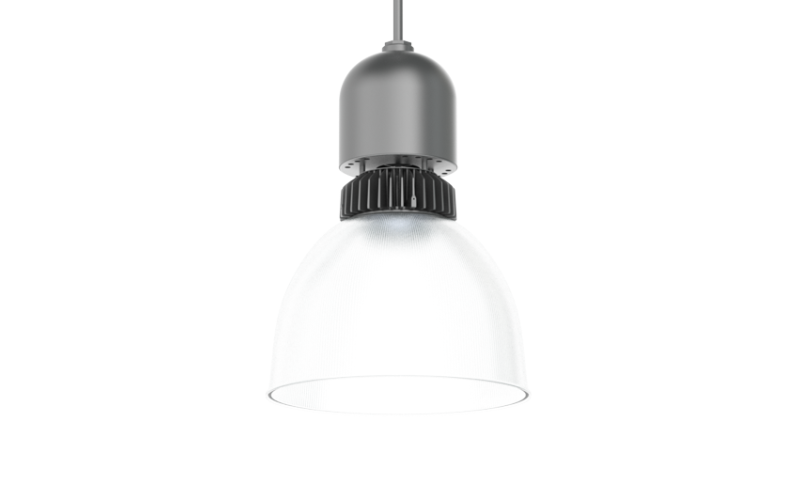

16" Lumen Max LX series performance pendant for low and mid-bay applications. Aluminum reflector designed for maximum downlight. Domed Fixture Housing (DDH) features a contemporary design and is easy to maintain. Single-stage optical system for smooth light distribution. LED module and driver designed for ease of maintenance and replacement. Posi-lock reflector retention ring will absorb shocks and impacts. Optional safety cable. Variety of optical lenses and mounting methods.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.2"L: 16.2"H: 22.4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80
- Watt(Approx)
- Lumens(Approx)6500 Lm13000 Lm14000 Lm
- OpticsDirectWide Flood
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USADLC*
- EnvironmentDampCorrosion Resistant
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRDDH16LEDLX-DLC-RC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
