Spectrum Lighting
RAFO8XT. 8'' ROUND ADJUSTABLE ACCENT XT SERIES / 5000 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION

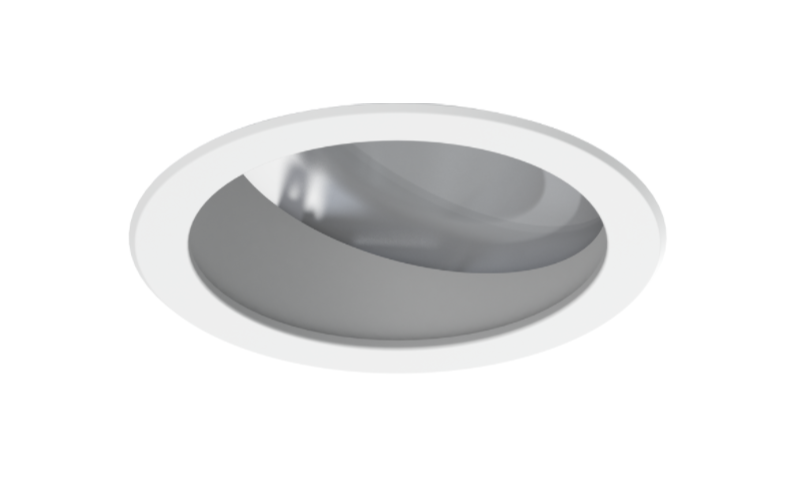

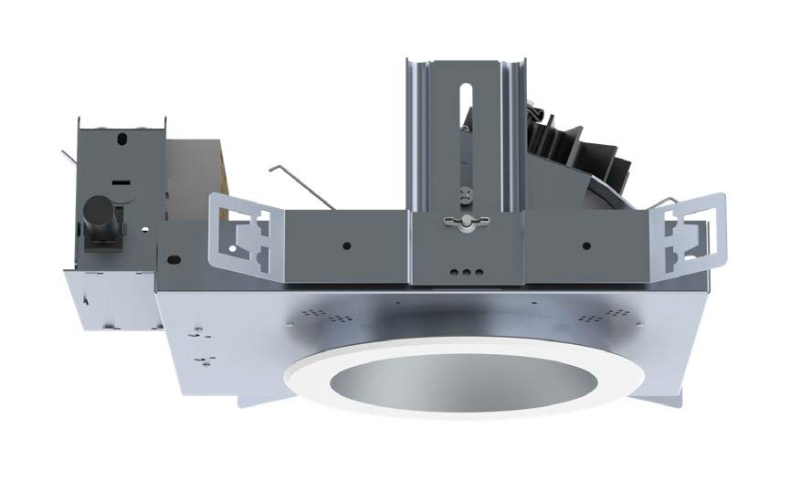

Versatile 8" Round aperture recessed LED accent light with a wide range of lumens and optical controls. Tilts and locks to 35°. Rotates and locks 360°. Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Shallow plenum design. Tool-less driver and j-box access. Posi-lock trim retention torsion springs.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9.5"L: 9.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI83 98
- Watt(Approx)11.1 W15 W23.7 W34.6 W39.9 W54 W
- Lumens(Approx)1000 Lm1300 Lm2000 Lm3000 Lm4000 Lm5000 Lm
- OpticsDirectNarrowFloodWide Flood
- AdjustableLock Aiming
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampWetCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth4.8 ''5.6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRAFO8XT-RH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
