Spectrum Lighting

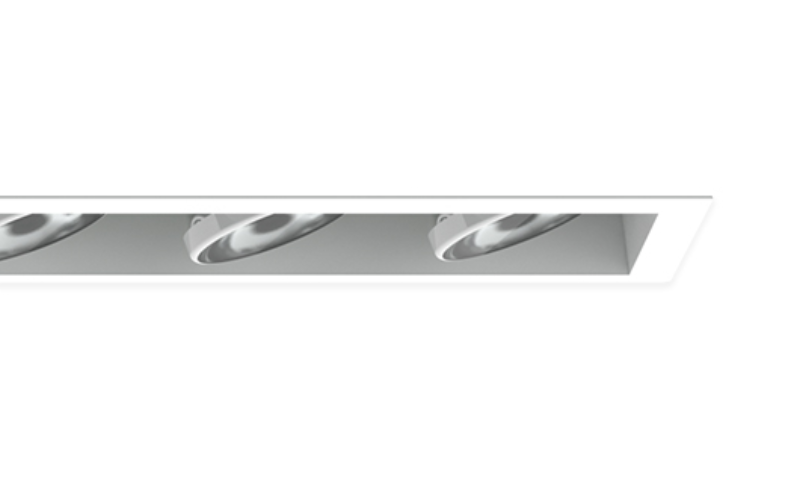

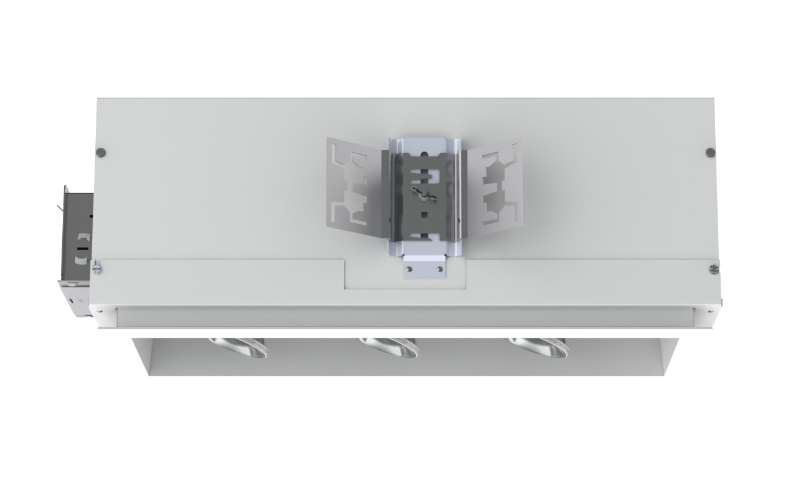

RC6. 6'' MODULAR ACCENT LIGHT.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
RC series PAR30/PAR20 Incandescent modular fixture for retail, residential, and commercial accent lighting. Flush Flat Flange for all ceiling types. Regressed Beveled Flange for clean finished appearance. Regressed Razor Edge Flangeless for plaster ceilings install. Fixture available with 1-4 modules. Fixture modules rotate 359°, lock and tilt to 40° for optimal aiming. Easy j-box access. Multi-bar adjustable mounting brackets. Posi-lock trim attachment. Front loading lamp bezel accepts up to two lens/louver options. Integral 0.625" collar, with Deep Ceiling Extension (PR) consult factory.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.9"L: 6"12"18"24"
- Light SourceMR/PAR/AR and Other Bulbs
- CCT/Color
- CRI
- Watt(Approx)
- Lumens(Approx)
- OpticsDirectSpot
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless DrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth7.1 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRC6-FTINC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
