Spectrum Lighting
RDFI6LEDGV. 6'' ROUND IC/CCEA DOWNLIGHT GV SERIES / 1500 LUMENS MAX.
Configure
Add to project
RESOURCES
DESCRIPTION

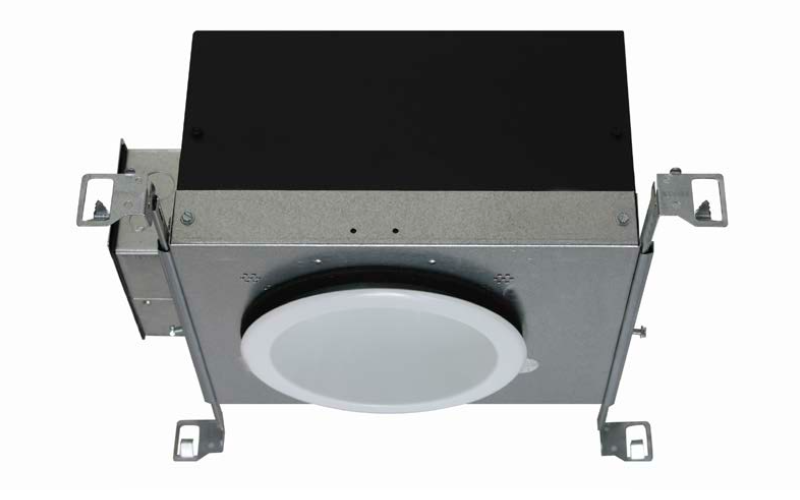

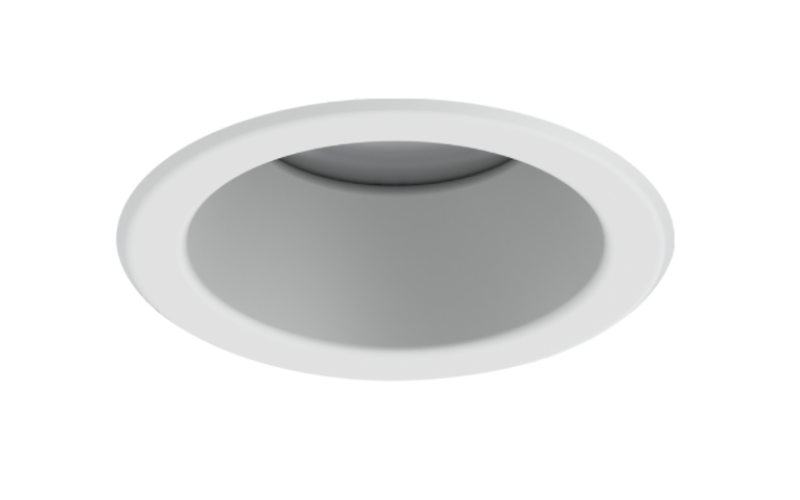

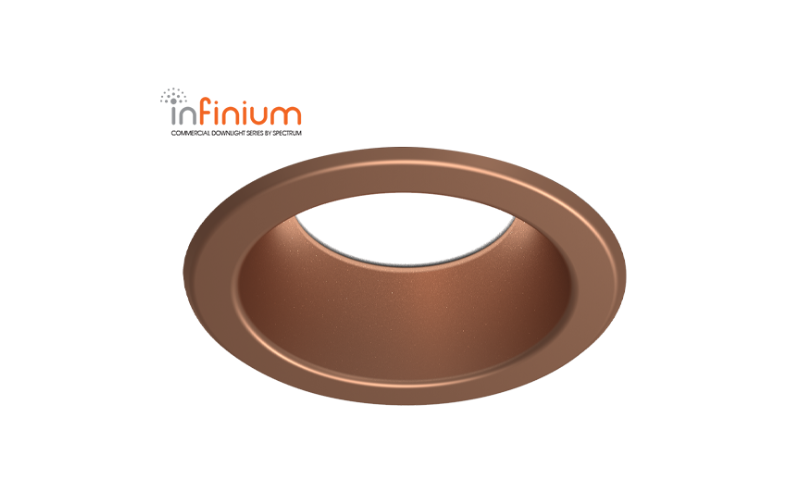

6" LED recessed open aperture downlight for general downlighting. Constructed for compliance with Insulated Ceiling (IC) and Chicago Plenum (CCEA) requirements. Single stage optical system with deep reflector design delivers smooth glare-free general illumination. Tool-less LED module, driver, and J-Box access. Multi-Bar mounting brackets. BH27 Standard mounting bars included. Posi-lock trim retention springs. Integral 0.625" collar, with Deep Ceiling Extension (PR), consult factory.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI85
- Watt(Approx)13.3 W
- Lumens(Approx)1155 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron EcoSystemeldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth6.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
