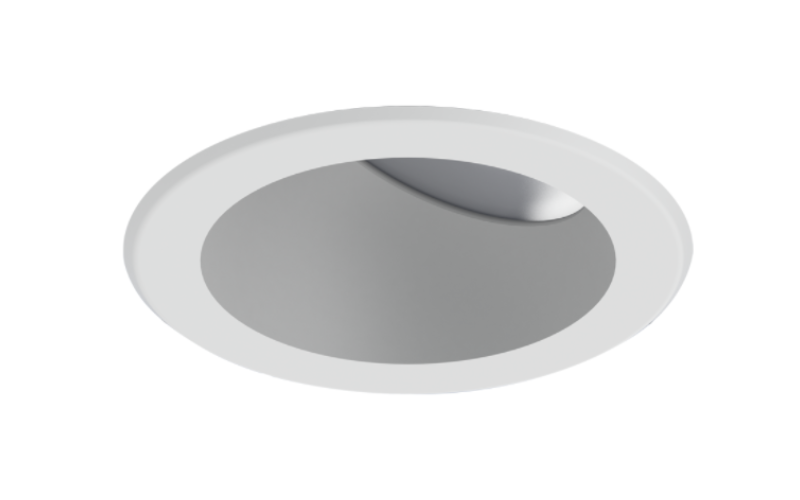

RWFO6PC. 6'' ROUND WALL WASH PC SERIES / 3000 LUMENS.
Configure
Add to project
RESOURCES
DESCRIPTION

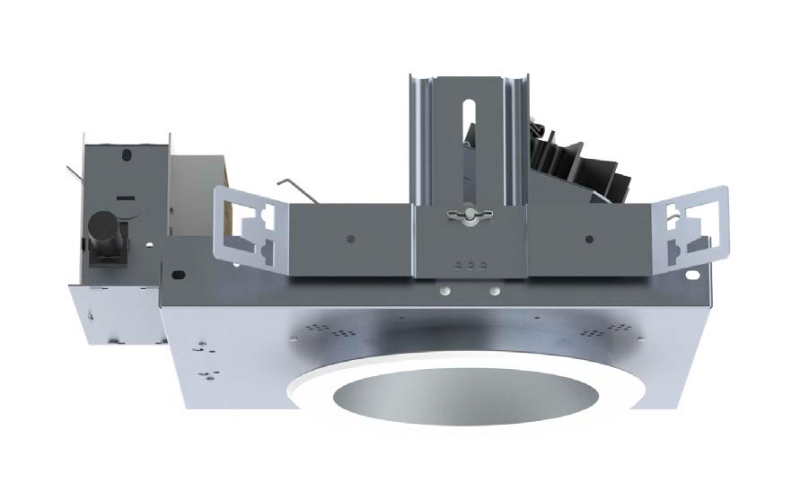

Versatile 6" Round aperture recessed LED wall wash with a wide range of lumens and control options. Two-stage optical system for smooth light distribution and focus control. Quick change LED module with interchangeable optics for job site adjustment and fixture maintenance. Shallow plenum design. Tool-less driver and j-box access. Posi-lock trim retention torsion springs. See RWZO4 series for trimless plaster or wood ceiling
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.5"L: 7.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)15.2 W23.2 W31 W
- Lumens(Approx)1100 Lm2100 Lm3000 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth5.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
